Parker CETOP 3 Solenoid Valve
Cetop 3 D1VW PDF
Mounting: NFPA D03 / DIN NG6
Max. Pressure: P. A. B Ports 345 Bar
Max. Pressure: T Port 210 Bar
Max. Flow: 80 LPM Selected Spool Configurations Only
D1MW Corrosion Protection CETOP 3
D1MW CETOP3 PDF
Mounting: NFPA D03 / DIN NG06 / CETOP 03
Maximum Flow Rate: 80 LPM
Max. Pressure: Port T: 207 Bar | Ports P, A B: 350 BAR
Robust Design With Corrosion Protection For Rough Applications

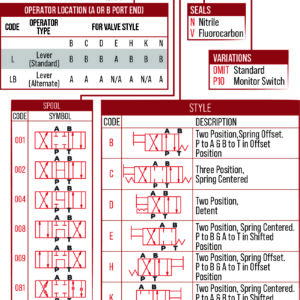

Parker D1VL Lever Operated Cetop 3
Parker D1VL CETOP3 PDF
Mounting: NFPA D03 / DIN NG6
Maximum Pressure: P. A. B Ports 345 Bar
Maximum Pressure: T Port 34 Bar
D1VP Oil Operated Cetop 3
D1VA-D1VP CETOP PDF
Mounting: NFPA D03 / DIN NG6
Max. Pressure: P. A. B Ports 345 Bar
Max. Pressure: T Port 207 Bar
Pilot Pressure Min.: 15.2 Bar (220 PSI)
Pilot Pressure Max.: 207 Bar (3000 PSI)
D1VA Air Operated Cetop 3
D1VA-D1VP_CETOP
Mounting: NFPA D03 / DIN NG6
Max. Pressure: P. A. B Ports 345 Bar
Max. Pressure: T Port 34 Bar
Pilot Pressure Min.: 4.1 Bar (60 PSI)
Pilot Pressure Max.: 10.2 Bar (150 PSI)

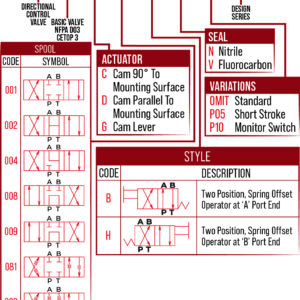

D1VC Cam Operated Cetop 3
D1VC CETOP PDF
Mounting: NFPA D03 / DIN NG6
Maximum Pressure: P. A. B Ports 345 Bar
Maximum Pressure: T Port 34 Bar
Parker CETOP 5 Solenoid Valve
CETOP 5 D3W PDF
Mounting: CETOP 5 NFPA D05 / DIN NG10
Max. Pressure: P. A. B 350 Bar
Max. Pressure: T Port 210 Bar
Max. Flow: 150 LPM Selected Spool Configurations Only
