Dinoil ML Monoblock Control Valve
Dinoil ML Monoblock PDF
Maximum Flow: 45 LPM
Max. Pressure: 250 Bar
Max. Tank Pressure: 50 Bar
Max. Internal Leakage: 08 cc/min
Relief Valve Adjustable
Single Load Drop Check In Inlet
Ports: ⅜” BSPP
Contact HWL For Cable & Micro Switch Kits
Dinoil DN Monoblock Control Valve
DN Monoblock Valve PDF
Maximum Flow: 55 LPM
Max. Pressure: 300 Bar
Max. Tank Pressure: 50 Bar
Max. Internal Leakage: 08 cc/min
Relief Valve Adjustable
Single Load Drop Check In Inlet
Ports: 1/2” BSPP
Contact HWL For Cable & Micro Switch Kits

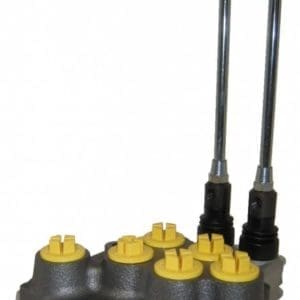

Hydrocontrol HC-D10 Monoblock Control Valve
HydroControl HC-D10 Valve PDF
Maximum Flow: 55 LPM
Max. Pressure: 350 Bar
Max. Tank Pressure: 20 Bar
Ports: ½” BSPP
Relief Valve Adjustable
Single Load Drop Check In Inlet
Contact HWL For Cable & Micro Switch Kits
Hydrocontrol HC-M50 Monoblock Control Valve
Hydrocontrol HCM50 PDF
Maximum Flow: 50 LPM
Max. Pressure: 350 Bar
Max. Tank Pressure: 20 Bar
Ports: ½” BSPP
Contact HWL For Cable & Micro Switch Kits
Dinoil DN 85 Monoblock Control Valve
DN85 Dinoil Monoblock PDF
Maximum Flow: 100 LPM
Max. Pressure: 250 Bar
Max. Tank Pressure: 50 Bar
Max. Internal Leakage: 8cc/min
Relief Valve Adjustable
Single Load Drop Check In Inlet
Ports: ¾” BSPP
Contact HWL For Cable & Micro Switch Kits
Dinoil DN120 Monoblock Control Valve
DN120 Dinoil Monoblock PDF
Maximum Flow: 130 LPM
Max. Pressure: 250 Bar
Max. Tank Pressure: 50 Bar
Max. Internal Leakage: 60cc/min
Relief Valve Adjustable
Single Load Drop Check In Inlet
Ports: ¾” BSPP
Contact HWL For Cable & Micro Switch Kits
Dinoil DL Monoblock Control Valve
Dinoil DL Monoblock PDF
Maximum Flow: 150 LPM
Max. Pressure: 180 Bar
Max. Tank Pressure: 50 Bar
Max. Internal Leakage: 60cc/min
Relief Valve Adjustable
Load Drop Check In Inlet
Ports: 1” BSPP
Contact HWL For Cable & Micro Switch Kits
Dinoil MDE Monoblock Electric Control Valve
MDE Dinoil Monoblock PDF
Maximum Flow: 30 LPM
Max. Pressure: 180 Bar
Max. Tank Pressure: 5 Bar
Max. Internal Leakage: 40cc/min
Relief Valve Adjustable
Single Load Drop Check In Inlet
Ports: 3/8” BSPP
