Inline Valves
Showing 1–9 of 26 results
-
CBF Dual Inline Over Centre
Dual Inline Over Centre Valve
Pilot Ratio: 4.25/1
01 White Spring Range 20 – 200 Bar, Factory Setting 100 Bar
02 Black Spring Range 50 – 350 Bar, Factory Setting 280 Bar -
CBF Dual Over Centre Valve
Dual Overcentre Valve
Pilot Ratio: 4.25/1
01 White Spring Range 20 – 200 Bar, Factory Setting 100 Bar
02 Black Spring Range 50 – 350 Bar, Factory Setting 280 Bar -
CBF HOSE BURST VALVE
Hose Burst Valve
Absolute Filtration: 25µ
Maximum Pressure: 350 Bar
Maximum Flow Range: 50 – 150 LPM -
CBF Inline Over Centre
Single Inline Over centre Valve
Pilot Ratio: 4.25/1
01 White Spring Range 20 – 200 Bar, Factory Setting 100 Bar
02 Black Spring Range 50 – 350 Bar, Factory Setting 280 Bar -

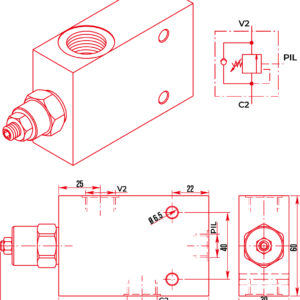

CBF Over Centre/Counterbalance
Single Overcentre Valve With External Pilot
Pilot Ratio: 4.25/1
01 White Spring Range 20 – 200 Bar, Factory Setting 100 Bar
02 Black Spring Range 50 – 350 Bar, Factory Setting 280 Bar -

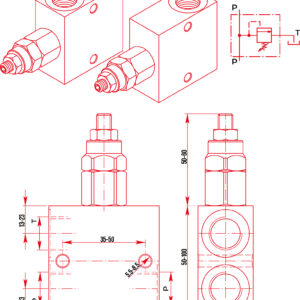

CBF Relief Valve 3 Port
CBF VLP 3 Port Relief Valve PDF
Direct Acting Cartridge
Pressure Range:
01 White Spring Range 20 – 100 Bar, Factory Setting 80 Bar
02 Yellow Spring Range 40 – 250 Bar, Factory Setting 180 Bar
03 Black Spring Range 60 – 350 Bar, Factory Setting 250 Bar -

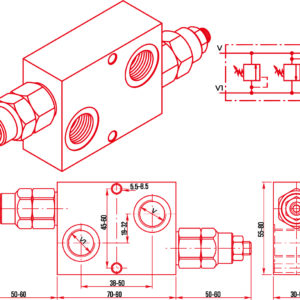

CBF RELIEF VALVE 4 PORT CROSSLINE
CBFVLP-DI 4 Port Crossline PDF
Maximum Operating Pressure: 300 Bar
Maximum Flow Rate: 40 LPM–140 LPM
Absolute Filtration: 25µ
Dual Cross-Relief Valve -

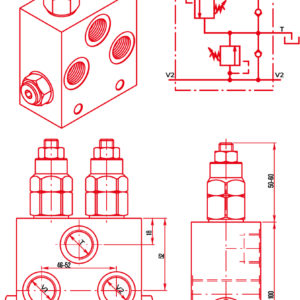

CBF RELIEF VALVE 5 PORT CROSSLINE
CBFVLP-DA 5 Port Crossline PDF
Dual Relief Valve With Make Up Check
Pressure Range:
01 White Spring Range 20 – 100 Bar, Factory Setting 80 Bar
02 Yellow Spring Range 40 – 250 Bar, Factory Setting 180 Bar
03 Black Spring Range 60 – 350 Bar, Factory Setting 250 Bar -

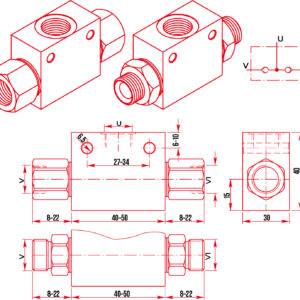

CBF SHUTTLE VALVE
Shuttle Valve
Absolute Filtration: 25µ
Pressure Range: 280 – 350 Bar
Maximum Flow Range: 20 – 100 LPM
