Motors
Working in tandem with the hydraulic pump; hydraulic motors convert the hydraulic energy into mechanical power, providing a force that supplies motion to the external load. Browse our extensive range of hydraulic motors.
Showing 1–9 of 28 results
-
SAI Radial Piston Motors
Displacement: 39–2007cc/rev
Power Output: 44.3–160.9HP
Peak Pressure: 5000–6400PSI
Speeds From: 375–1200RPM -
F11 VOAC/Volvo Fixed Bent Axis
F11-F12 Hydraulic Motor PDF
F11-F12 Saw Motor PDFMax. Cont. Speed: 12800 RPM
Max. Oil Flow: 363 LPM
Max. Operating Speed: 14000 RPM -
M3 Hydraulic Vane Motor
Maximum Speed: 3000 RPM
Mount: SAE A – 2 Bolt
Shaft: 3/4” Parallel Keyed
Ports: Pressure: 3/4” BSPP | Drain: 3/8” BSPP -
Marzocchi Gear Motor Group 1.5
Sizes: 2.8–6.2cc/rev
Shaft: TO 1.8 taper 100 Nm 3mm key
Spigot: 30mm
Mount: 4 bolt 73mm x 56mm
Ports: ½’’ BSPP
Drain Port: ¼’’ BSPP
Bi- directional -
Nichols LSHT 112A Series Motor
Displacement: 59–395 cc/rev
Max. Cont. Pressure: 2500 PSI
Maximum Oil Flow: 113.5 LPM
Maximum Speed: 858 RPM
Max. Cont. Torque: 470 Nm -
Parker Commercial Cast Iron Gear Motor M315
Sizes: 10.2cc/rev to 40.6cc/rev
Shaft: ⅝’’ 9 spline up to 1½’’ gear set
⅞’’13 spline
⅞’’ parallel keyed
Mount: SAE A 2 bolt
SAE B 2 bolt -
F12 VOAC/Volvo Fixed Bent Axis
F11-F12 Hydraulic Motor PDF
F11-F12 Saw Motor PDFMax. Cont. Speed.: 7300 RPM
Max. Oil Flow: 363 LPM
Max. Operating Speed: 14000 RPM -

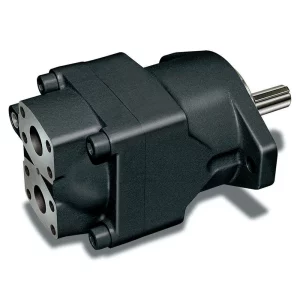

M4D Hydraulic Vane Motor
Maximum Speed: 2500 RPM
Mount: SAE C – 2 & 4 Bolt
Shaft: 1 1/4”-14T Splined (SAE C)
Ports: Pressure: 1 1/4” Code 61 | Drain: 3/4”-16 UNF -
Marzocchi Gear Motor Group 2 SAE
Sizes: 9.6cc/rev to 28.2cc/rev
Shaft: C1 ⅝’’ Parallel keyed 135Nm
S1 ⅝’’ 9 spline 185 Nm
Spigot: 3¼’’
Mount: SAE A 2 bolt
Ports; 1 1/16 ’’ x 1 1/16 ’’ uno
Drain port: ¼’’ BSPP
Bi- directional
