Parker Commercial Cast Iron Gear Motor M315
Parker PGP/PGM315 PDF
Sizes: 10.2cc/rev to 40.6cc/rev
Shaft: ⅝’’ 9 spline up to 1½’’ gear set
⅞’’13 spline
⅞’’ parallel keyed
Mount: SAE A 2 bolt
SAE B 2 bolt

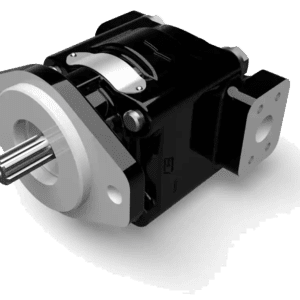

Parker Commercial Cast Iron Gear Motor M330
Parker PGP/PGM330 PDF
Sizes: 16.1cc/rev to 64.6cc/rev
Shaft: ⅞’’13 spline
1’’ 15 spline
1’’ parallel keyed
Mount: SAE B 2 and 4 bolt
SAE C 4 bolt
Parker Commercial Cast Iron Gear Motor M350
Parker PGP/PGM350 PDF
Shaft: SAE B ⅞” 13T Spline
SAE BB 1” 15T Spline | SAE C 1 ¼” 14T Spline
SAE C 1 ¼” Parallel Keyed
Mounts: SAE B 2 & 4 Bolt | SAE C 2 & 4 Bolt
Parker Commercial Cast Iron Gear Motor M365
Parker PGP/PGM365
Shaft: SAE C 1 ¼” 14T Spline
SAE C 1 ¼” Parallel Keyed
Mount: SAE B 2 & 4 Bolt
SAE C 2 & 4 Bolt
Parker Commercial Cast Iron Gear Motor M20
Parker PGP/PGM020 PDF
Shaft: SAE A ⅝” 9T Spline
SAE B ⅞” 13T Spline
SAE B ⅞” Parallel Keyed
SAE BB 1” Parallel Keyed
Mount: SAE A 2 Bolt | SAE B 2 & 4 Bolt
6 Bolt Round Chelsea 4 Bolt
Parker Commercial Cast Iron Gear Motor M31
Parker PGP/PGM030 PDF
Shaft: SAE A ⅝” 9T Spline | SAE B ⅞” 13T Spline
SAE B ⅞” Parallel Keyed | SAE BB 1” Parallel Keyed
Mount: SAE A 2 Bolt
SAE B 2 & 4 Bolt | SAE C 4 Bolt
6 Bolt Round 2.625 Spigot
Parker Commercial Cast Iron Gear Motor M51
Parker PGP/PGM051 PDF
Shaft: SAE B ⅞” 13T Spline
SAE C 1 ¼” 14T Spline | SAE C 1 ¼” Parallel Keyed
Mount: SAE B 2 & 4 Bolt | SAE C 2 & 4 Bolt
6 Bolt Round 2.625” Spigot
Parker Commercial Cast Iron Gear Motor M76
Parker PGP/PGM076 PDF
Shaft: SAE C 1 ¼” 14T Spline | SAE C 1 ¼” Parallel Keyed
SAE D 1 3/4” 13T Spline
Mount: SAE B 4 Bolt
SAE C 2 & 4 Bolt | SAE D 4 Bolt
