Description

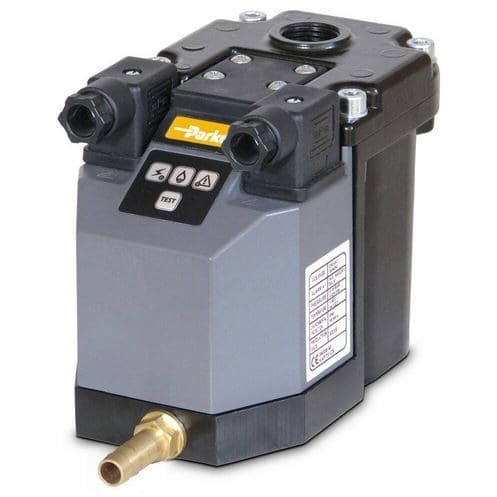

Drains up to 50 Bar G. The safe and reliable removal of large amounts of condensate, especially at critical installation points, such as compressor aftercoolers, storage vessels, and separators, where approx. 70 to 80% of condensate arises, really make Parker Zander’s ED4100 range of condensate drains stand out. The ED4100’s integrated dirt filter, large valve cross-section, direct controlled 2/2-way solenoid valve and capacitive level sensing allows for the safe, reliable, and economical removal of condensate, whilst simultaneously preventing any loss of compressed air.
Features:
Zero air loss
Automatic level sensing operation
Maximum operating pressure 50 barg
Self-monitoring and cleaning
NPT and BSP-P options available
Installation is simple and secure using the wall bracket provided, as well as upper or side attachment, allowing for vibration-free installation – even in enclosed spaces. For low ambient temperatures, a heater can be retrofitted. A service kit that contains all of the required wearing parts is available for quick and easy maintenance.
