Description

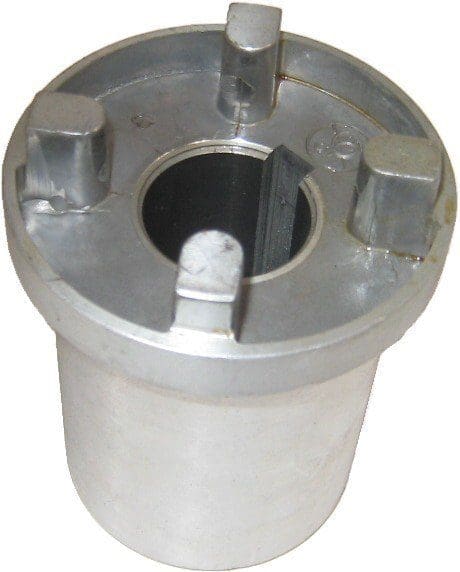

OMT ND — MOTOR EURO
| Model Number | Shaft Ø (D) | FRAME SIZE | LENGTH (G) | HEIGHT (C) | MOTOR RATING (KW) |
|---|---|---|---|---|---|
| OMTND48AG1 | 11 mm | 63 mm | 19 mm | 30 mm | 0.12 – 0.18 |
| OMTND48BG1 | 14 mm | 71 mm | 29 mm | 30 mm | 0.25 – 0.37 |
| OMTND48CG1 | 19 mm | 80 mm | 54 mm | 38 mm | 0.55 – 0.75 |
| OMTND65AG1 | 19 mm | 80 mm | 47.5 mm | 42 mm | 0.55 – 0.75 |
| OMTND65BG1 | 24 mm | 90 mm | 47.5 mm | 48 mm | 1.1 – 1.5 |
| OMTND65CG1 | 28 mm | 100 – 112 mm | 57.5 mm | 53 mm | 2.2 – 4.0 |
| OMTND86AG1 | 28 mm | 100 – 112 mm | 60 mm | 55 mm | 2.2 – 4.0 |
| OMTND86BG1 | 38 mm | 132 mm | 88 mm | 73 mm | 5.5 – 9.0 |
| OMTND108BG1 | 42 mm | 160 mm | 110 mm | 84 mm | 11.0 – 15.0 |
| OMTND108CG1 | 48 mm | 180 mm | 110 mm | 100 mm | 18.5 – 22.0 |
