Description

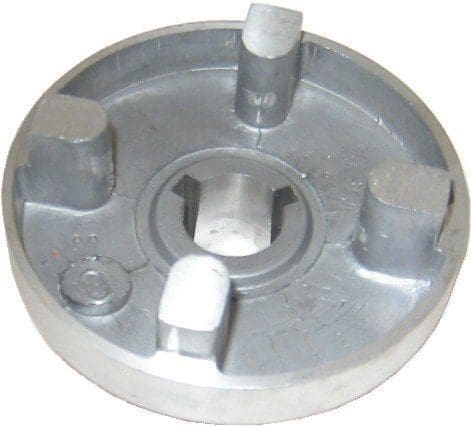

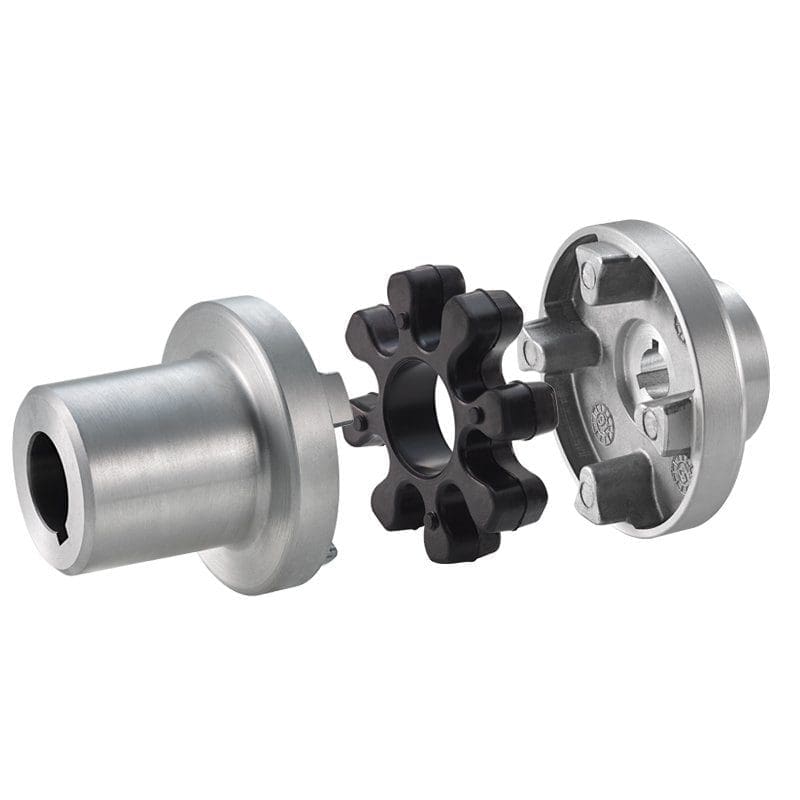

OMT ND — Pump EURO

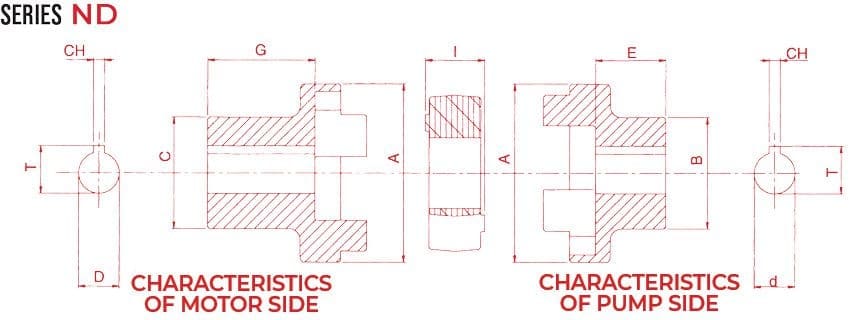

| Model Number | PUMP GROUP | COUPLING Ø | LENGTH (E) | HEIGHT (B) |
|---|---|---|---|---|
| OMTND48PU1P | Group 1 | 48 mm | 17.0 mm | 30.0 mm |
| OMTND65PU1P | Group 1 | 65 mm | 21.5 mm | 34.0 mm |
| OMTND48P1C | 12mm Parallel | 48 mm | 17.0 mm | 30.0 mm |
| OMTND65P1C | 12mm Parallel | 65 mm | 21.5 mm | 34.0 mm |
| OMTND65P2 | Group 2 | 65 mm | 21.5 mm | 34.0 mm |
| OMTND86P2 | Group 2 | 86 mm | 27.0 mm | 48.0 mm |
| OMTND108P2 | Group 2 | 108 mm | 34.0 mm | 64.0 mm |
| OMTND86P3U | Group 3 | 86 mm | 27.0 mm | 48.0 mm |
| OMTND108P3U | Group 3 | 108 mm | 34.0 mm | 64.0 mm |
