Description

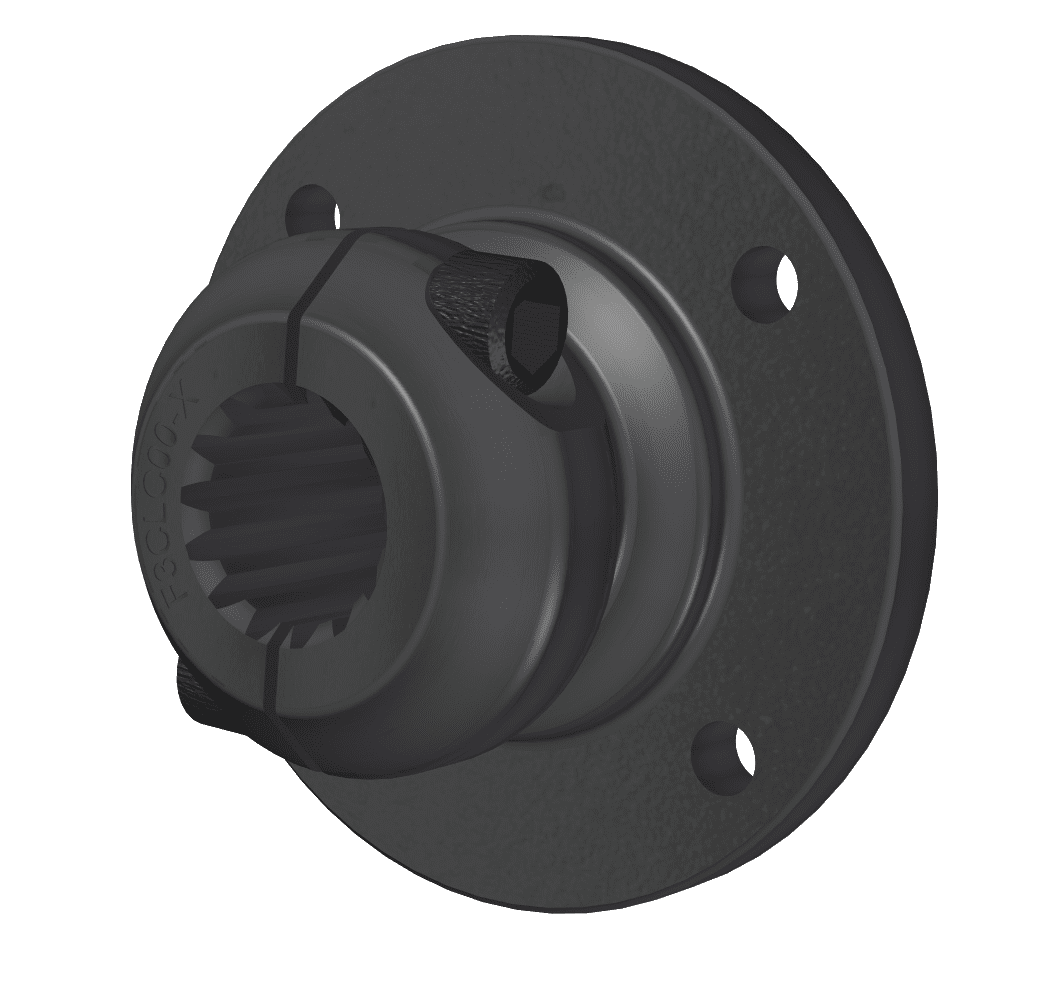

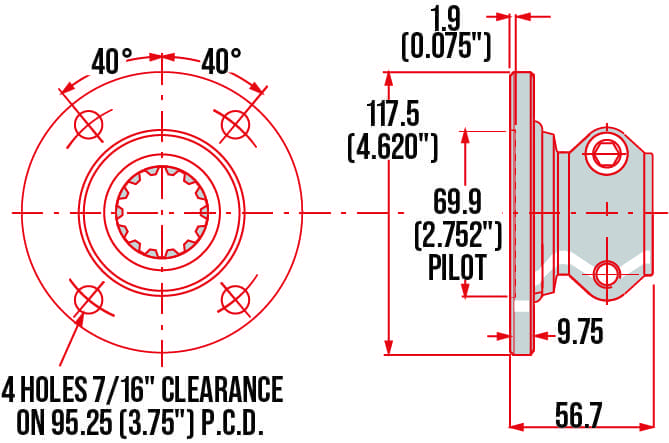

COMPANION FLANGES
| PART NUMBER | NUMBER OF SPLINES | SPLINE OUTER Ø |
|---|---|---|
| 84/F3CLC33 | 6 | 1 3/8” |
| 84/F3CLC115 | 8 | 36 mm |
| 84/F3CLCD08 | 13 | 1 3/4” |
| 84/F3CLC06 | 14 | 1 1/4” |
| 84/F3CLC04 | 15 | 1.0” |
DYNAGEAR COMPANION FLANGES
Dynagear Companion Flanges PDF
Spicer 1350 & 1410 Series
Additional information
| Brand |
|---|
