Additional information
| Brand |
|---|

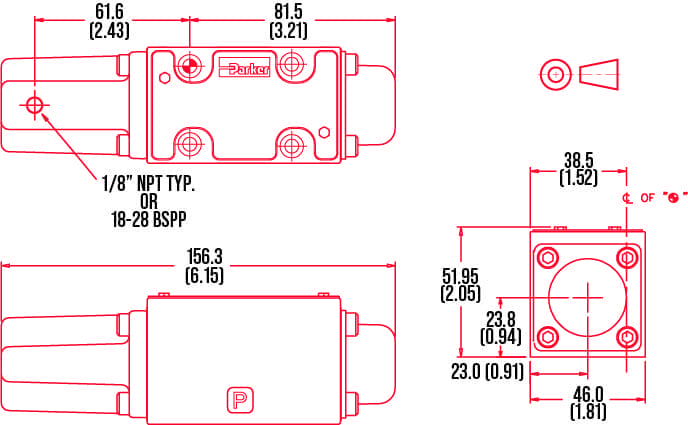

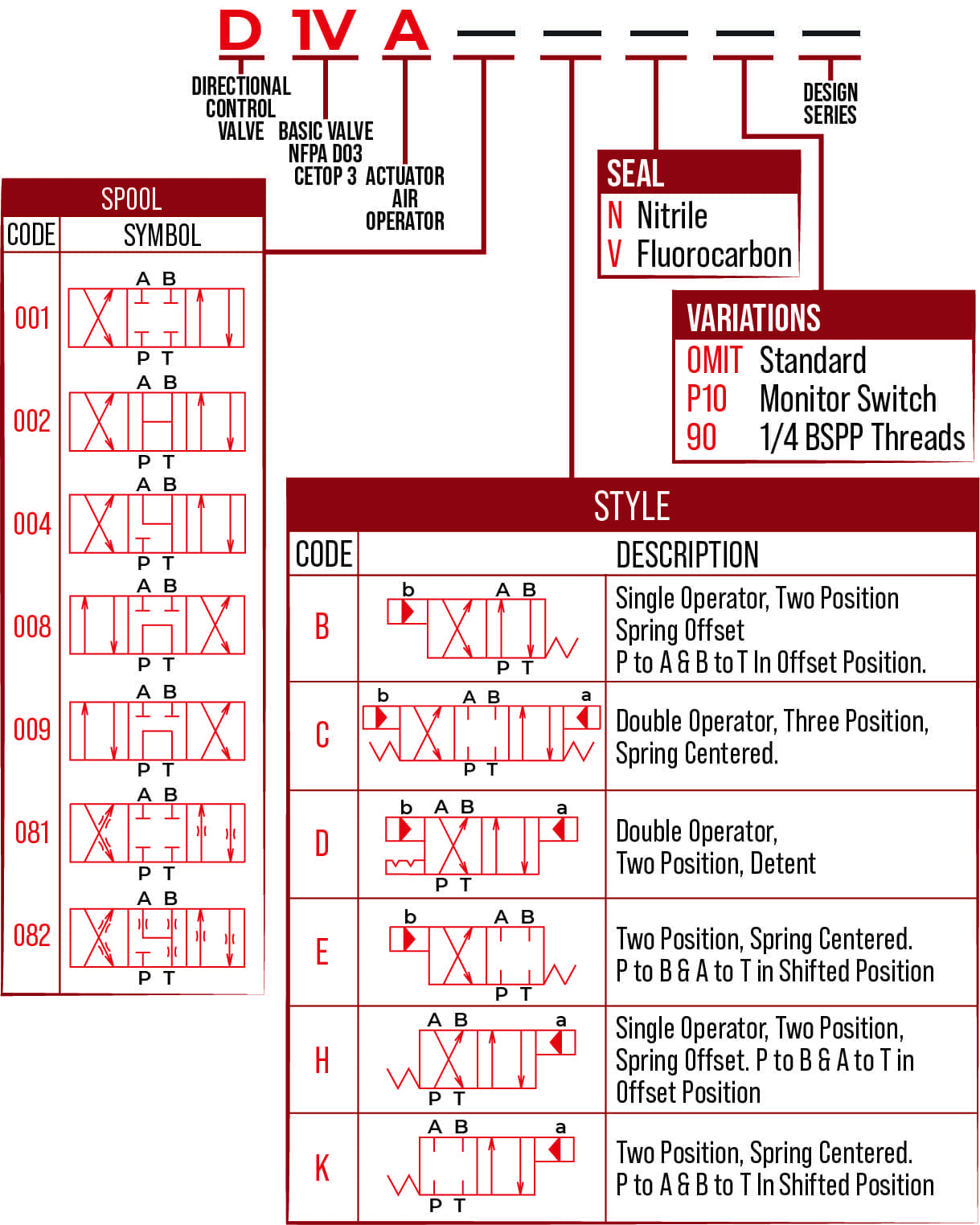

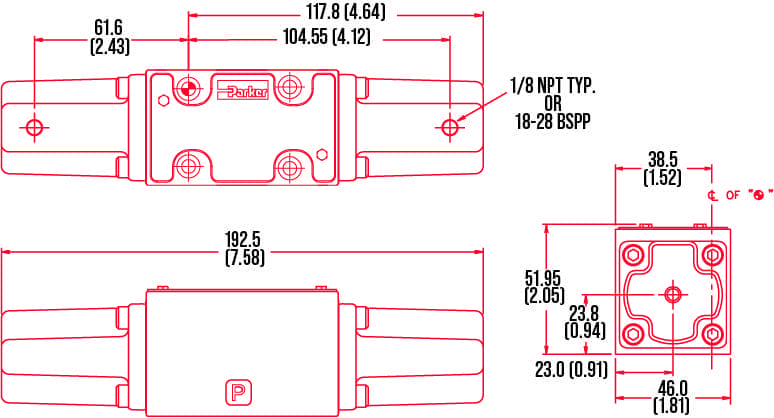

D1VA Air Operated Cetop 3
Mounting: NFPA D03 / DIN NG6
Max. Pressure: P. A. B Ports 345 Bar
Max. Pressure: T Port 34 Bar
Pilot Pressure Min.: 4.1 Bar (60 PSI)
Pilot Pressure Max.: 10.2 Bar (150 PSI)
Related products
-
D1MW Corrosion Protection CETOP 3
Mounting: NFPA D03 / DIN NG06 / CETOP 03
Maximum Flow Rate: 80 LPM
Max. Pressure: Port T: 207 Bar | Ports P, A B: 350 BAR
Robust Design With Corrosion Protection For Rough Applications -
D1VP Oil Operated Cetop 3
D1VA-D1VP CETOP PDF
Mounting: NFPA D03 / DIN NG6
Max. Pressure: P. A. B Ports 345 Bar
Max. Pressure: T Port 207 Bar
Pilot Pressure Min.: 15.2 Bar (220 PSI)
Pilot Pressure Max.: 207 Bar (3000 PSI) -
Parker D1VL Lever Operated Cetop 3
Mounting: NFPA D03 / DIN NG6
Maximum Pressure: P. A. B Ports 345 Bar
Maximum Pressure: T Port 34 Bar
