Additional information
| Brand |
|---|

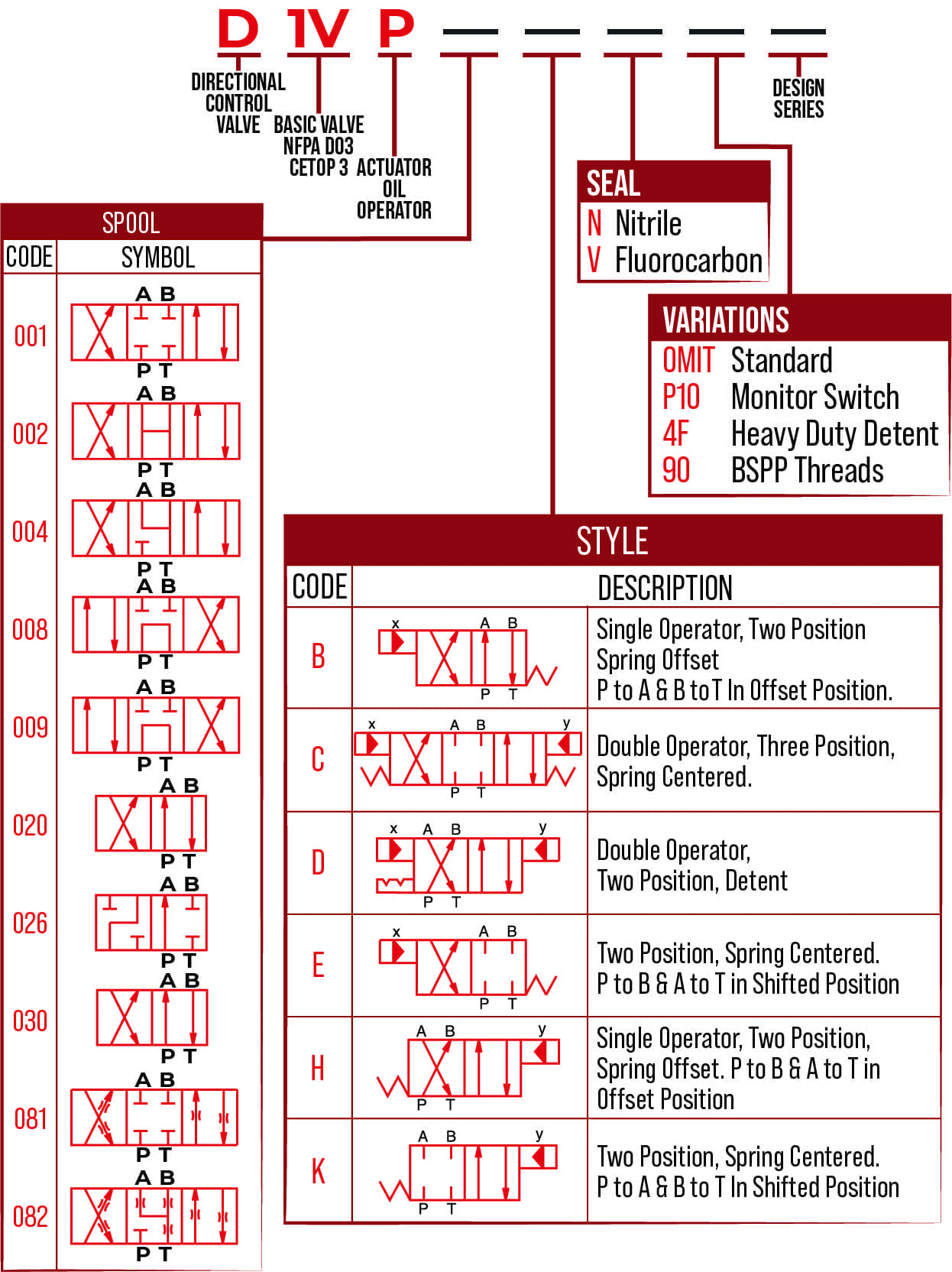

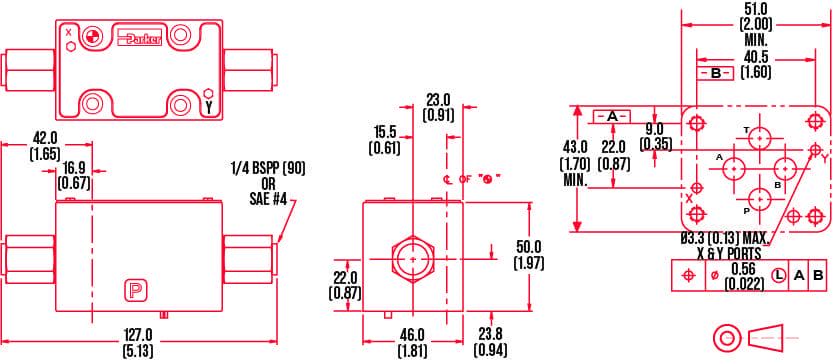

D1VP Oil Operated Cetop 3
D1VA-D1VP CETOP PDF
Mounting: NFPA D03 / DIN NG6
Max. Pressure: P. A. B Ports 345 Bar
Max. Pressure: T Port 207 Bar
Pilot Pressure Min.: 15.2 Bar (220 PSI)
Pilot Pressure Max.: 207 Bar (3000 PSI)
Related products
-
Parker CETOP 3 Solenoid Valve
Mounting: NFPA D03 / DIN NG6
Max. Pressure: P. A. B Ports 345 Bar
Max. Pressure: T Port 210 Bar
Max. Flow: 80 LPM Selected Spool Configurations Only -
Parker CETOP 5 Solenoid Valve
Mounting: CETOP 5 NFPA D05 / DIN NG10
Max. Pressure: P. A. B 350 Bar
Max. Pressure: T Port 210 Bar
Max. Flow: 150 LPM Selected Spool Configurations Only -

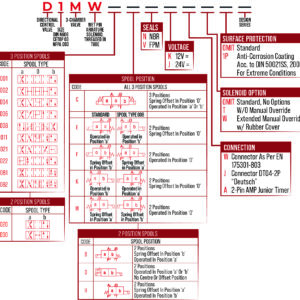

D1MW Corrosion Protection CETOP 3
Mounting: NFPA D03 / DIN NG06 / CETOP 03
Maximum Flow Rate: 80 LPM
Max. Pressure: Port T: 207 Bar | Ports P, A B: 350 BAR
Robust Design With Corrosion Protection For Rough Applications
