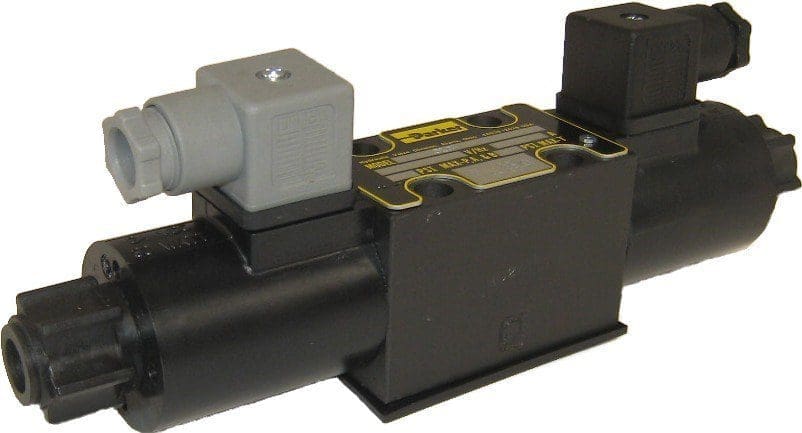

Mounting: CETOP 5 NFPA D05 / DIN NG10
Max. Pressure: P. A. B 350 Bar
Max. Pressure: T Port 210 Bar
Max. Flow: 150 LPM Selected Spool Configurations Only

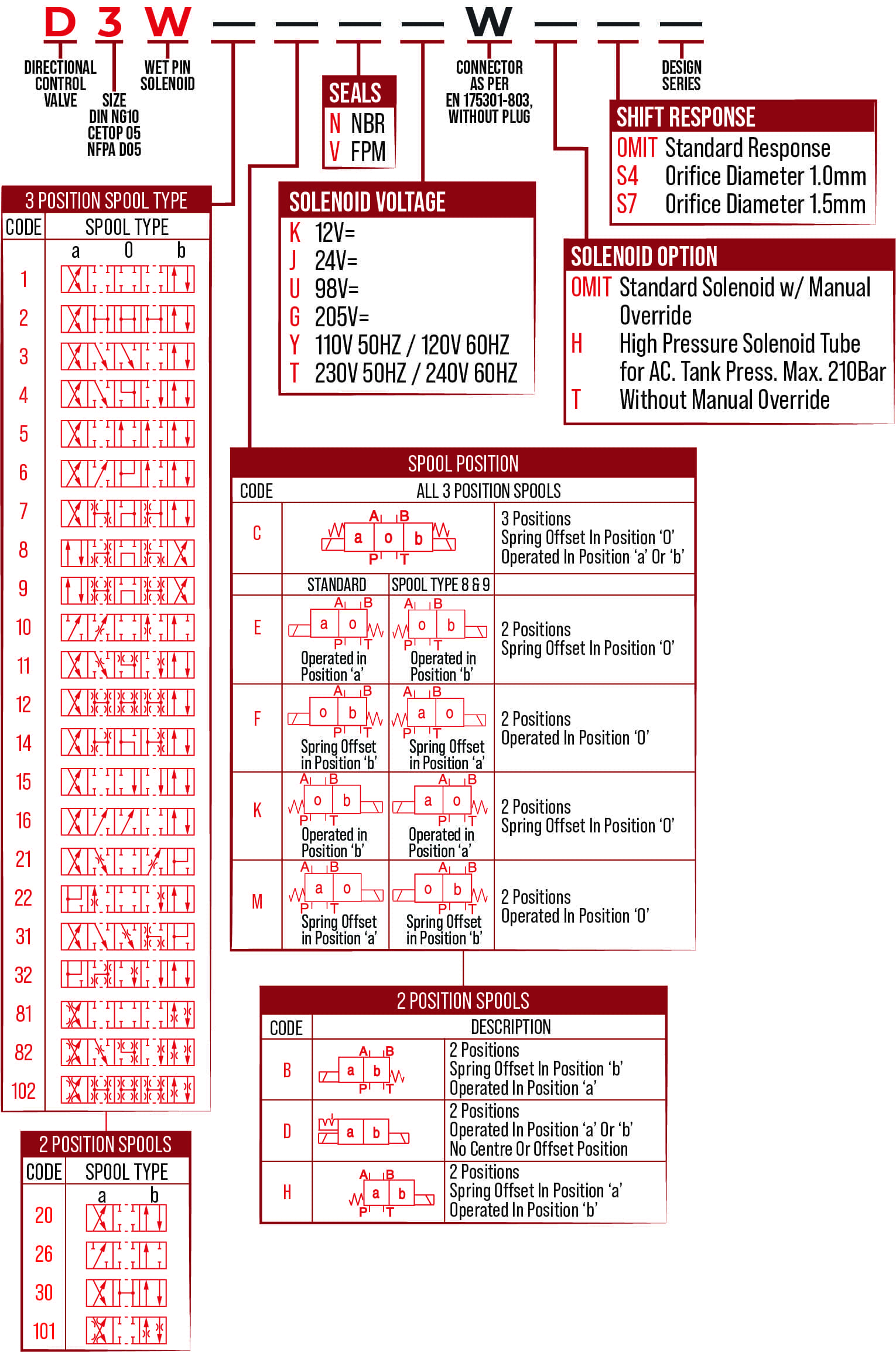

| Base Model | Description |
|---|---|
| D3W1 | Double Solenoid All Ports Closed In Neutral |
| D3W2 | Double Solenoid All Ports Open In Neutral |
| D3W4 | Double Solenoid P Blocked. A & B to Tank |
| D3W9 | Double Solenoid P to T Open. A & B Blocked. Closed In Cross Over |
| Base Model | DESCRIPTION |
|---|---|
| D3W20 | Single Solenoid P to A & B to T Open. Closed In Crossover |
| D3W20 | Single Solenoid 2 Position. Spring Offset P to A. Open In Crossover |
| Brand |
|---|
Mounting: NFPA D03 / DIN NG06 / CETOP 03
Maximum Flow Rate: 80 LPM
Max. Pressure: Port T: 207 Bar | Ports P, A B: 350 BAR
Robust Design With Corrosion Protection For Rough Applications
Mounting: NFPA D03 / DIN NG6
Maximum Pressure: P. A. B Ports 345 Bar
Maximum Pressure: T Port 34 Bar
D1VA-D1VP CETOP PDF
Mounting: NFPA D03 / DIN NG6
Max. Pressure: P. A. B Ports 345 Bar
Max. Pressure: T Port 207 Bar
Pilot Pressure Min.: 15.2 Bar (220 PSI)
Pilot Pressure Max.: 207 Bar (3000 PSI)
