Description
Regenitive mode for fast cylinder extend
Detent and pressure kickout on retract
No high pressure carry-over provision
MD1DLS VALVE
| Base Model | Banks | Description | Length (MM) | Weight (KG) |
|---|---|---|---|---|
| MD1DLS | One Bank | Double Acting | 46 | 2.2 |

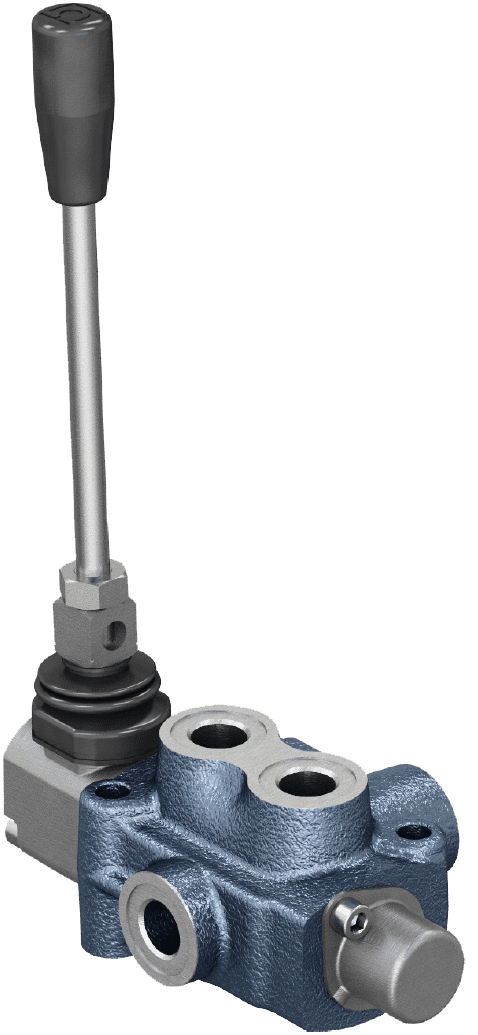

Dinoil MD1DLS
MD1DLS Dinoil Monoblock PDF
Maximum flow: 40 LPM
Max. Pressure: 250 Bar
Max. Tank Pressure: 50 Bar
Max. Internal Leakage: 8cc/min
Relief Valve Adjustable
No Load Drop Check
Ports: ⅜’’ BSPP
