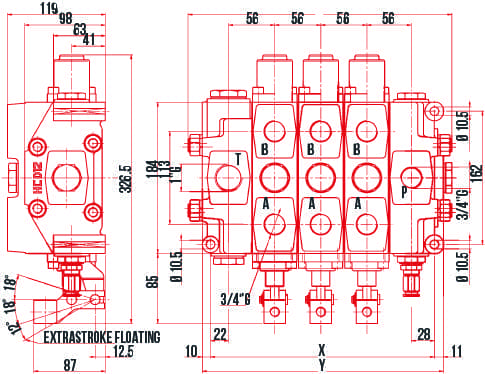

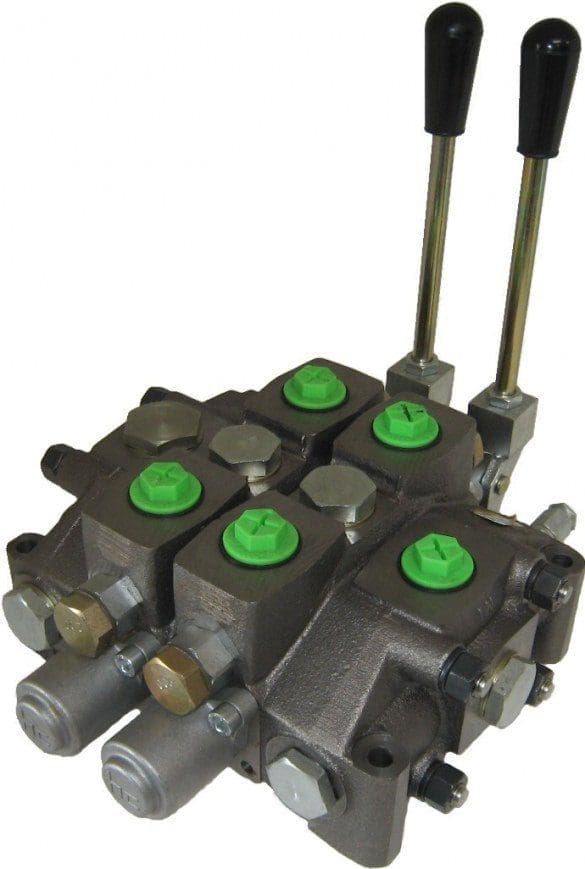

HydroControl HCD12 Sectional PDF
Stackable
Maximum Flow: 180 LPM
Maximum Press: 350 Bar
Relief Valve Adjustable
Ports: Inlet & Work ¾” BSPP
Outlet 1” BSPP
| BASE MODEL | BANKS | DESCRIPTION | WEIGHT (KG) |
|---|---|---|---|
| HC-D12/1 | One Bank | Double Acting | 18.4 |
| HC-D12/2 | Two Bank | Double Acting | 26.0 |
| HC-D12/3 | Three Bank | Double Acting | 33.6 |
| HC-D12/4 | Four Bank | Double Acting | 41.2 |
| PART NUMBER | DESCRIPTION – Add on Options |
|---|---|
| Service Port Relief & Anti-Cavitation Valve Per Section |
| Brand |
|---|
Stackable
Maximum flow: 70 LPM
Max. Pressure: 250 Bar
Max. Tank Pressure: 50 Bar
Max. Internal leakage: 8cc/min
Relief Valve Adjustable
Load Drop Check In Work Section
Ports: ½’’ BSPP
Stackable
Maximum Flow: 250 LPM
Maximum Pressure: 350 Bar
Ports: Inlet & Work 1” BSPP
Outlet 1 ¼” BSPP
Stackable
Maximum Flow: 380 LPM
Maximum Pressure: 350 Bar
Ports: Inlet & Work 1 ¼” BSPP
Outlet 1 ½” BSPP
