| Model | DESCRIPTION |
|---|---|

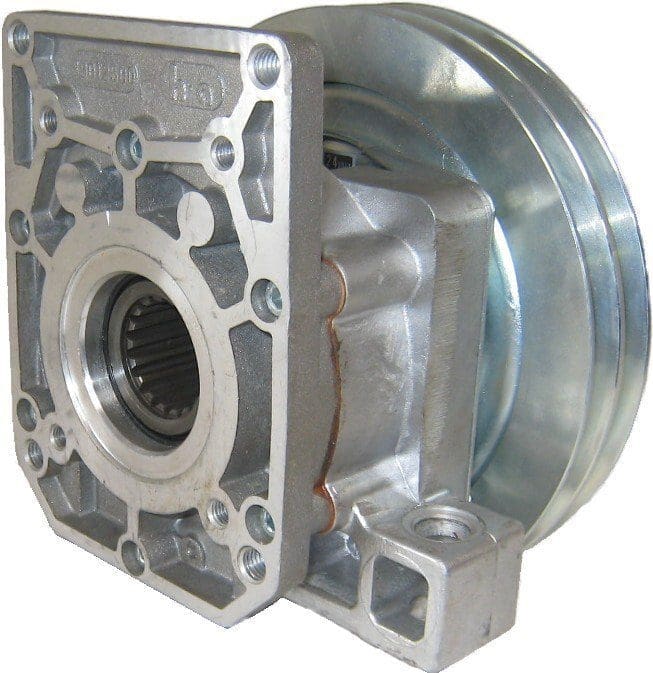

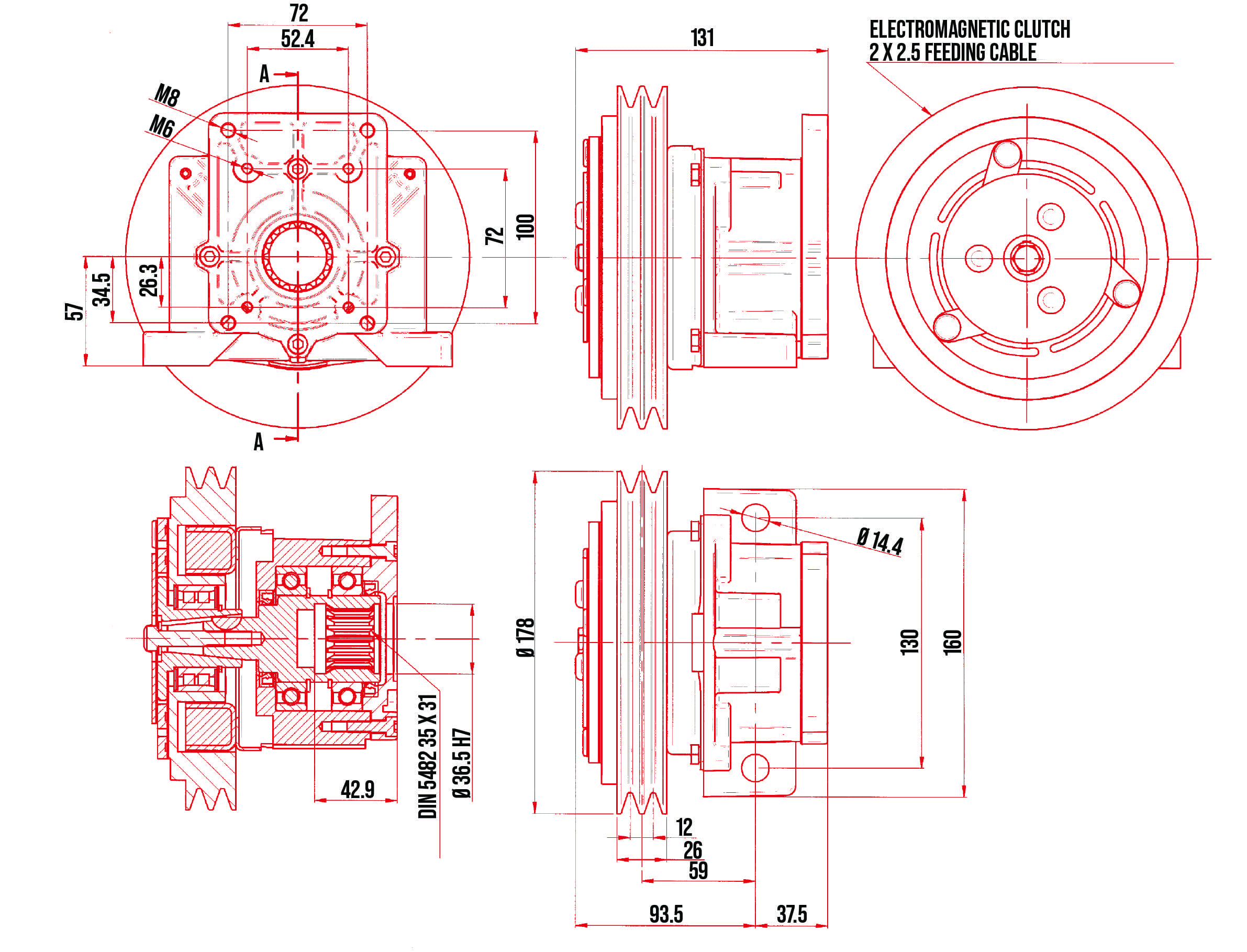

| 30980 | Clutch 12V Dual Group 1 & 2 Pump Mount |
| 30981 | Clutch 24V Dual Group 1 & 2 Pump Mount |
| 401214/175 | 12V Coil To Suit 30980 |
| 402414/175 | 24V Coil To Suit 30981 |
| 30803 | Group 2 & 3 Mount |
| 30420.3 | 2 Bolt SAE A Mount |
| 30420.1 | 2 Bolt SAE B Mount |
| Model | DESCRIPTION – Sleeves |
|---|---|
| 10012 | Z18 Group 2 – 3.2 mm Key |
| 10044 | Z18 Group 2 – 4 mm Key |
| 10014 | Z18 Group 3 – 4 mm Key |
| Brand |
|---|
Borelli 30100 GRP 1 Clutch PDF
Max. Power Output: 30 Kw
Max. Speed: 2000 RPM
Input Shaft: 20 mm Parallel Keyed
Pump Mount: Group 1 (72 mm X 52.4 mm)
Max. Engagement & Disengagement Speed Is 1000 RPM
Maximum Power Output: 60 Kw
Maximum Speed: 2700 RPM
Input Shaft: 42 mm Parallel Keyed
Pump Mount: SAE B
Max. Engagement & Disengagement Speed Is 1000 RPM
Borelli 30300 GRP 2/3 Clutch PDF
Max. Power Output: 40 Kw
Max. Speed: 2700 RPM
Input Shaft: 28 mm Parallel Keyed
Pump Mount: Group 2 & Group 3
Max. Engagement & Disengagement Speed Is 1000 RPM
