Description

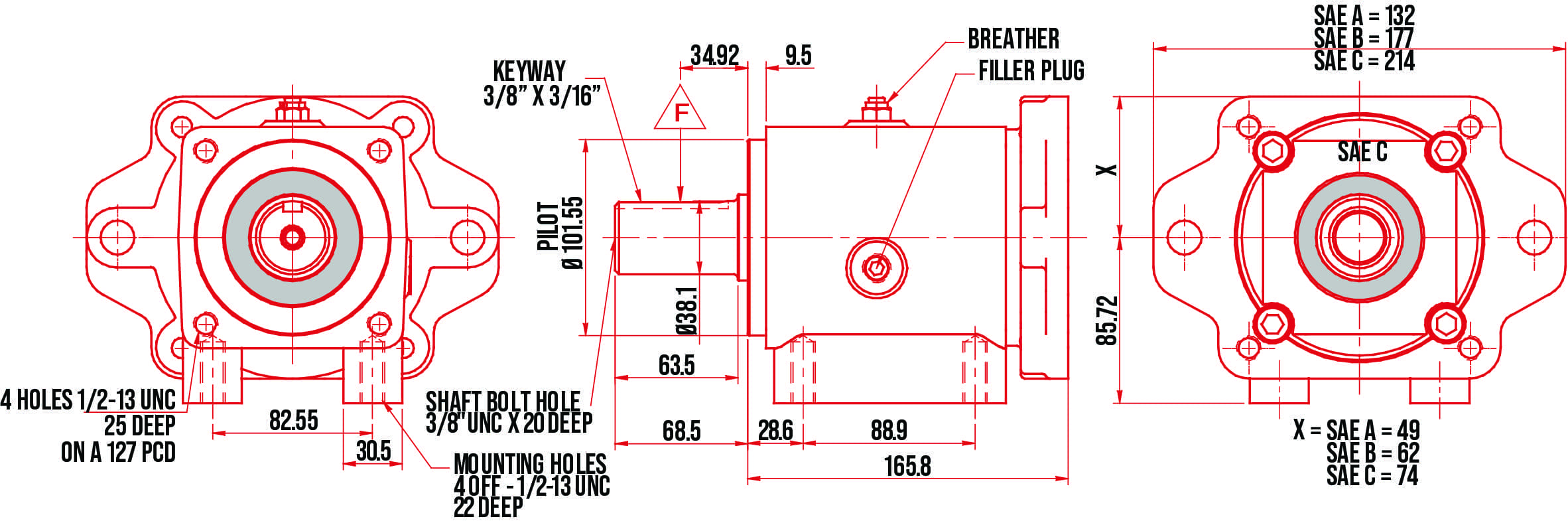

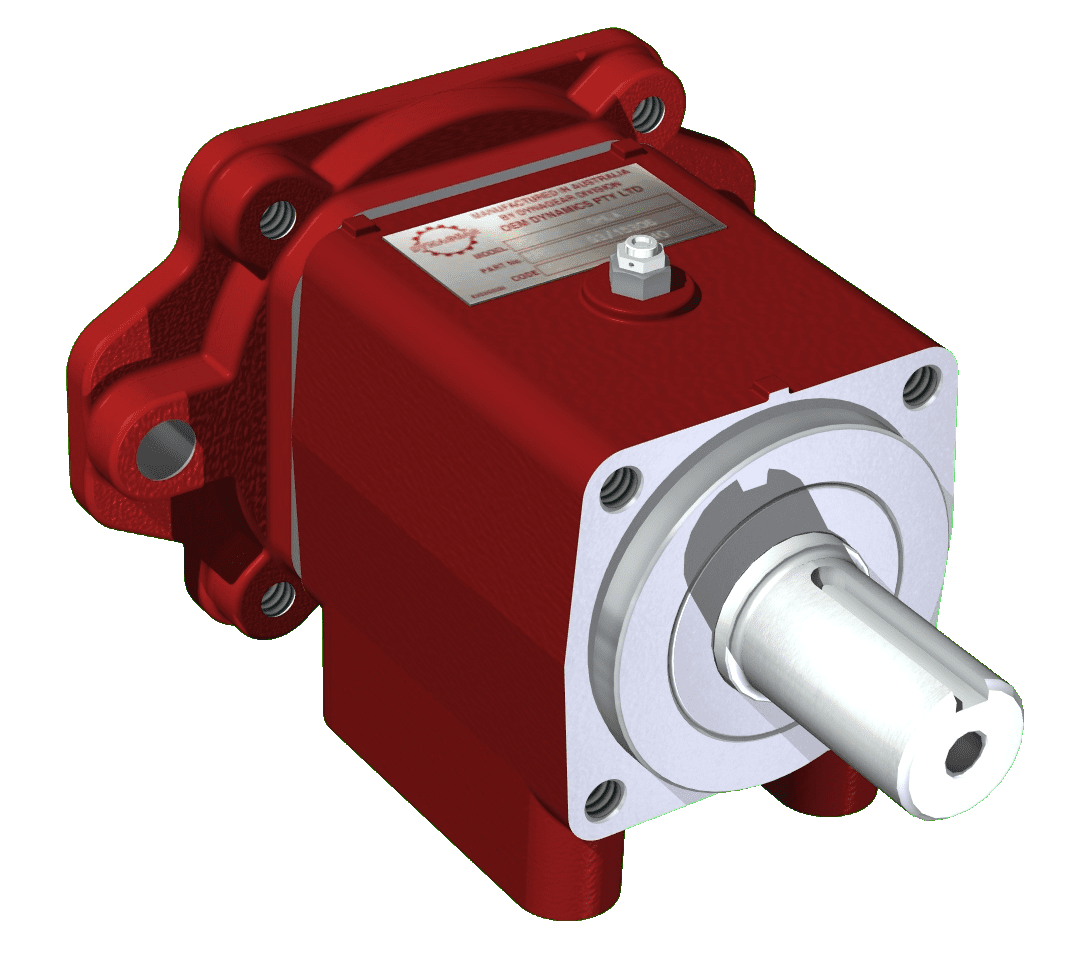

HDC MODEL
| CYLINDRICAL ROLLER | TAPER ROLLER | HYDRAULIC MOTOR ADAPTOR | HYD MOTOR SHAFT TYPE | SLEEVE PART NUMBER |
|---|---|---|---|---|
| 93R/15101 | 93/15101 | SAE “A” | Spline 9T 5/8” OD 16/32 DP | 64/03/20001 |
| 93R/15102 | 93/15102 | SAE “A” | Spline 11T 3/4” OD 16/32 DP | 64/03/20002 |
| 93R/15112 | 93/15112 | SAE “A” | Round 0.625” OD 0.156” Keyway | 64/03/20012 |
| 93R/15113 | 93/15113 | SAE “A” | Round 0.75” OD 0.187” Keyway | 64/03/20013 |
| 93R/15115 | 93/15115 | SAE “A” | Round 1.000” OD 0.25” Keyway | — |
| 93R/15203 | 93/15203 | SAE “B” | Spline 13T 7/8 OD 16/32 DP | 58/03/01698 |
| 93R/15204 | 93/15204 | SAE “B” | Spline 15T 1” OD 16/32 DP | 58/03/00714 |
| 93R/15206 | 93/15206 | SAE “B” | Spline 14T 1.250” OD 12/24 DP | — |
| 93R/15214 | 93/15214 | SAE “B” | Round 0.875” OD 0.25” Keyway | — |
| 93R/15215 | 93/15215 | SAE “B” | Round 1.000” OD 0.25” Keyway | — |
| 93R/15306 | 93/15306 | SAE “C” | Spline 14T 1.250” OD 12/24 DP | — |
| 93R/15324 | 93/15324 | SAE “C” | Round 1.250” OD 0.312” Keyway | — |
