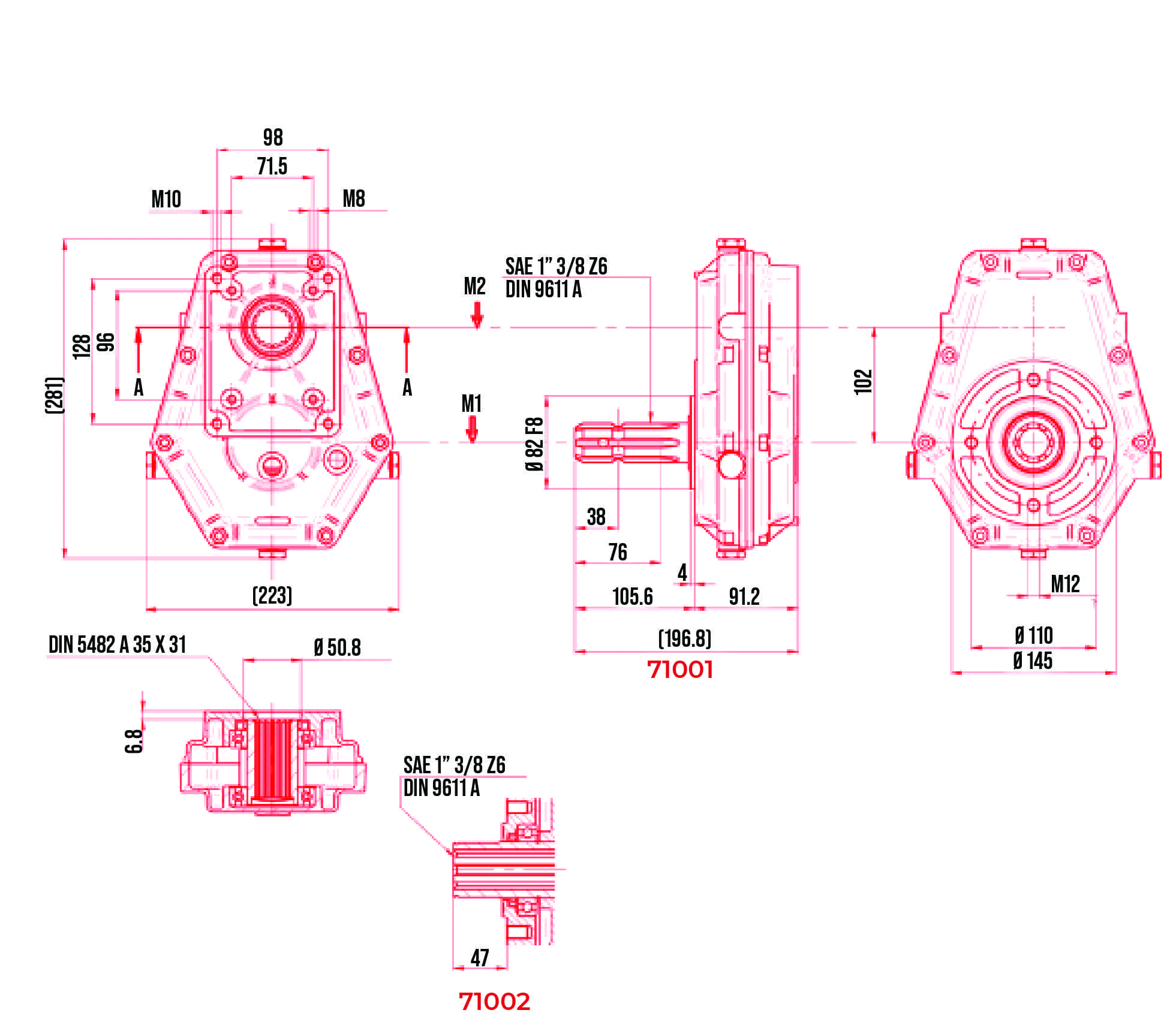

Borelli 71000 Series Step-Up-PTO PDF
Same Size As ML52
Max. Input : 20 KW
Max. Output Torque: 130 Nm
Ratio: 3.5 To 1
Pump Mount: Group 2 & Group 3 Euro
| Model | DESCRIPTION |
|---|---|
| 71002-5 | Gearbox 1 3/8” 6 Spline Female |
| 71001-5 | Gearbox 1 3/8” 6 Spline Male |
| Model | DESCRIPTION – Sleeves |
|---|---|
| 10012 | Z18 3.2 mm Key 1.8 Taper Group 2 |
| 10044 | Z18 4.0 mm Key 1.8 Taper Group 2 |
| 10014 | Z18 4.0 mm Key 1.8 Taper Group 3 |
| Brand |
|---|
Borelli 93000 Series Step-Up-PTO PDF
Max. Input : 72 KW
Max. Ouput Torque: 400 Nm
Ratio: 3.2 To 1
Pump Mount: SAE B & SAE C
Weight: 27 Kg
Borelli 60000 Series Step-Up-PTO PDF
Same Size As ML32
Maximum Input : 10 KW
Maximum Output Torque: 58 Nm
Ratio: 3.5 To 1
Pump Mount: Group 2 Euro
Borelli 70000 Series Step-Up-PTO PDF
Same Size As ML52 In Cast Iron
Max. Input : 37 Kw
Max. Output Torque: 180 Nm
Ratio: 3.5 To 1
Pump Mount: Group 2 & Group 3 Euro
Weight: 14.5 Kg
