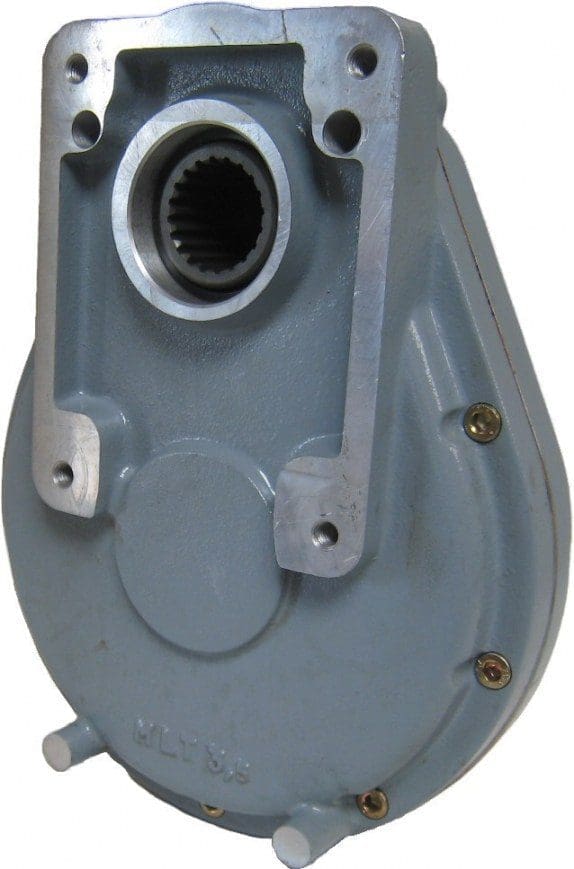

Borelli MLT35 Series Step-Up-PTO PDF
Max. Input: 40 KW
Max. Ouput Torque: 280 Nm
Ratio: 3.7 To 1
Pump Mount: Group 3.5 Euro
Weight: 16 Kg
| Model | DESCRIPTION |
|---|---|

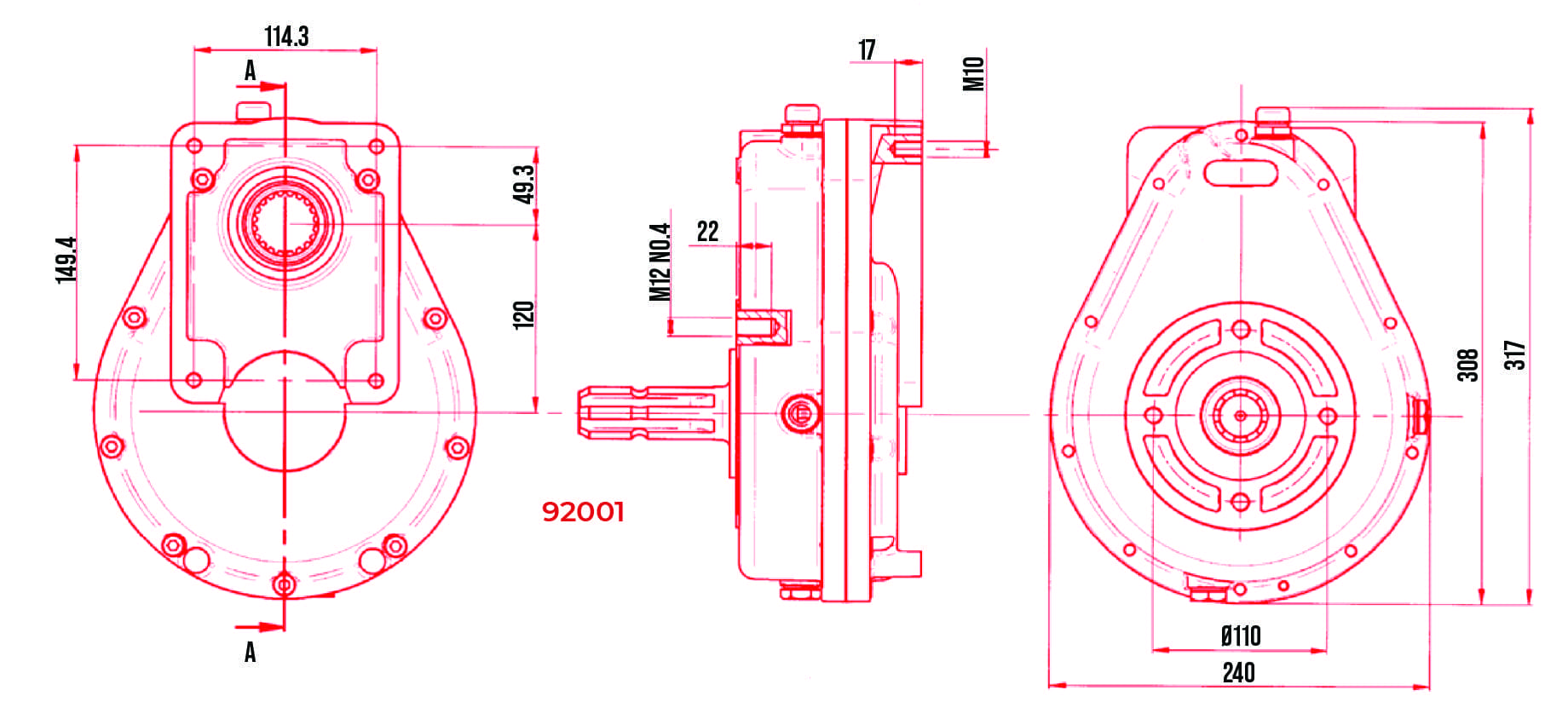

| 92002-5 | Gearbox 1 3/8” 6 Spline Female |
| 92001-5 | Gearbox 1 3/8” 6 Spline Male |
| Model | DESCRIPTION – Sleeves |
|---|---|
| NZ1011 | SAE B 2 Bolt Steel Adaptor Plate |
| 35503 | Z20 7/8” 13 Spline |
| 35504 | Z20 1.0” 15 Spline |
| 34200 | Z20 1 1/4” 14 Spline |
| Brand |
|---|
Borelli 60000 Series Step-Up-PTO PDF
Same Size As ML32
Maximum Input : 10 KW
Maximum Output Torque: 58 Nm
Ratio: 3.5 To 1
Pump Mount: Group 2 Euro
Borelli 71000 Series Step-Up-PTO PDF
Same Size As ML52
Max. Input : 20 KW
Max. Output Torque: 130 Nm
Ratio: 3.5 To 1
Pump Mount: Group 2 & Group 3 Euro
Maximum Input HP: 50
Maximum Input Torque: 486 Ft Lbs 659 Nm
Ratio: 3.31 To 1 & 2.04 To 1
Pump Mount: SAE B & SAE C 2 Bolt
