Description

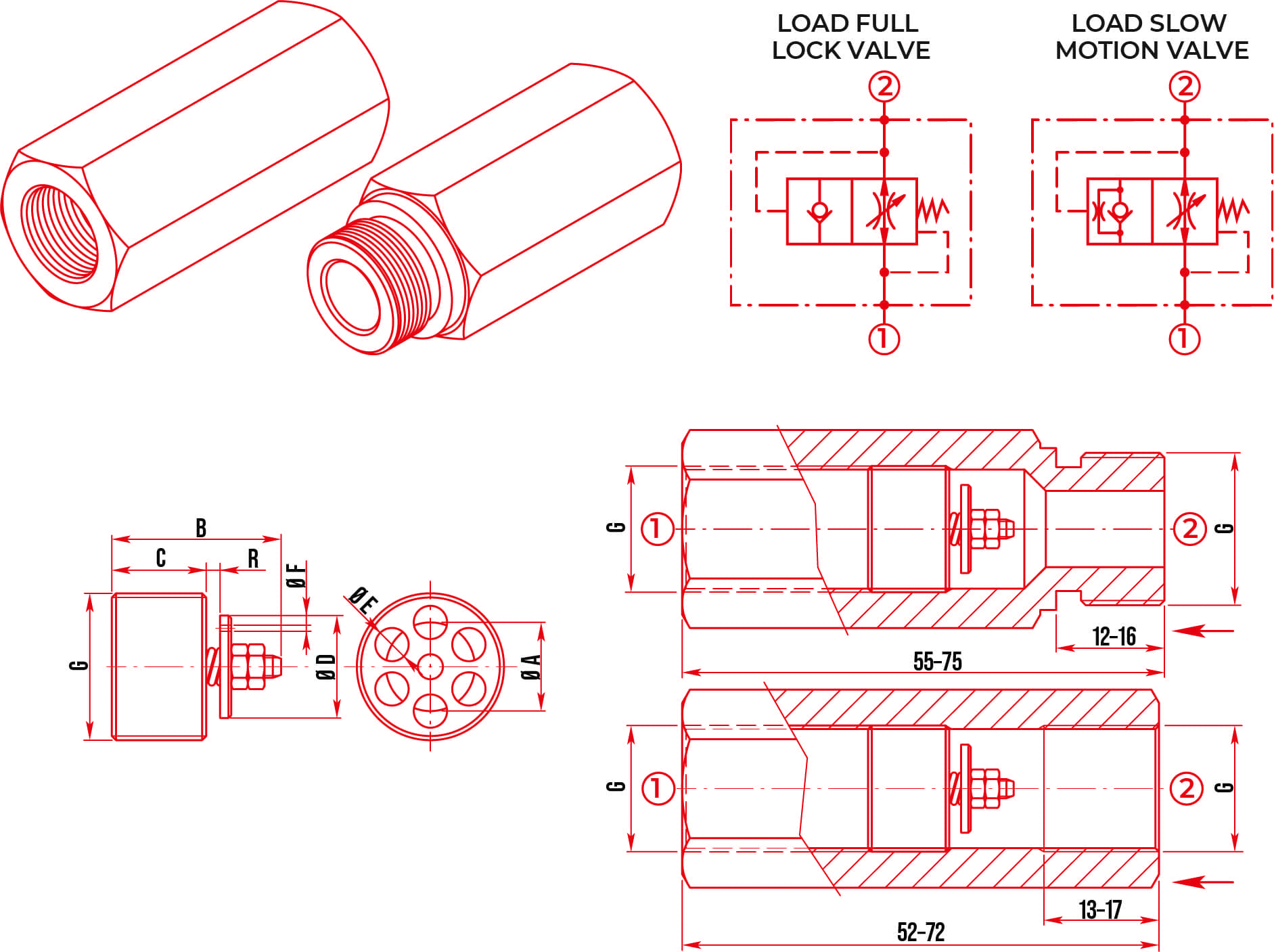

CBF VPN — hose burst valve
| Model Number | Ports | FACTORY SET FLOW | Max. PRESSURE | LENGTH |
|---|---|---|---|---|
| CBFVPN38MF | 3/8” BSPP | 18 LPM | 350 Bar | 55 mm |
| CBFVPN12MF | 1/2” BSPP | 38 LPM | 350 Bar | 70 mm |
| CBFVPN34MF | 3/4” BSPP | 45 LPM | 350 Bar | 75 mm |
CBF HOSE BURST VALVE
Hose Burst Valve
Absolute Filtration: 25µ
Maximum Pressure: 350 Bar
Maximum Flow Range: 50 – 150 LPM
Additional information
| Brand |
|---|
