Description

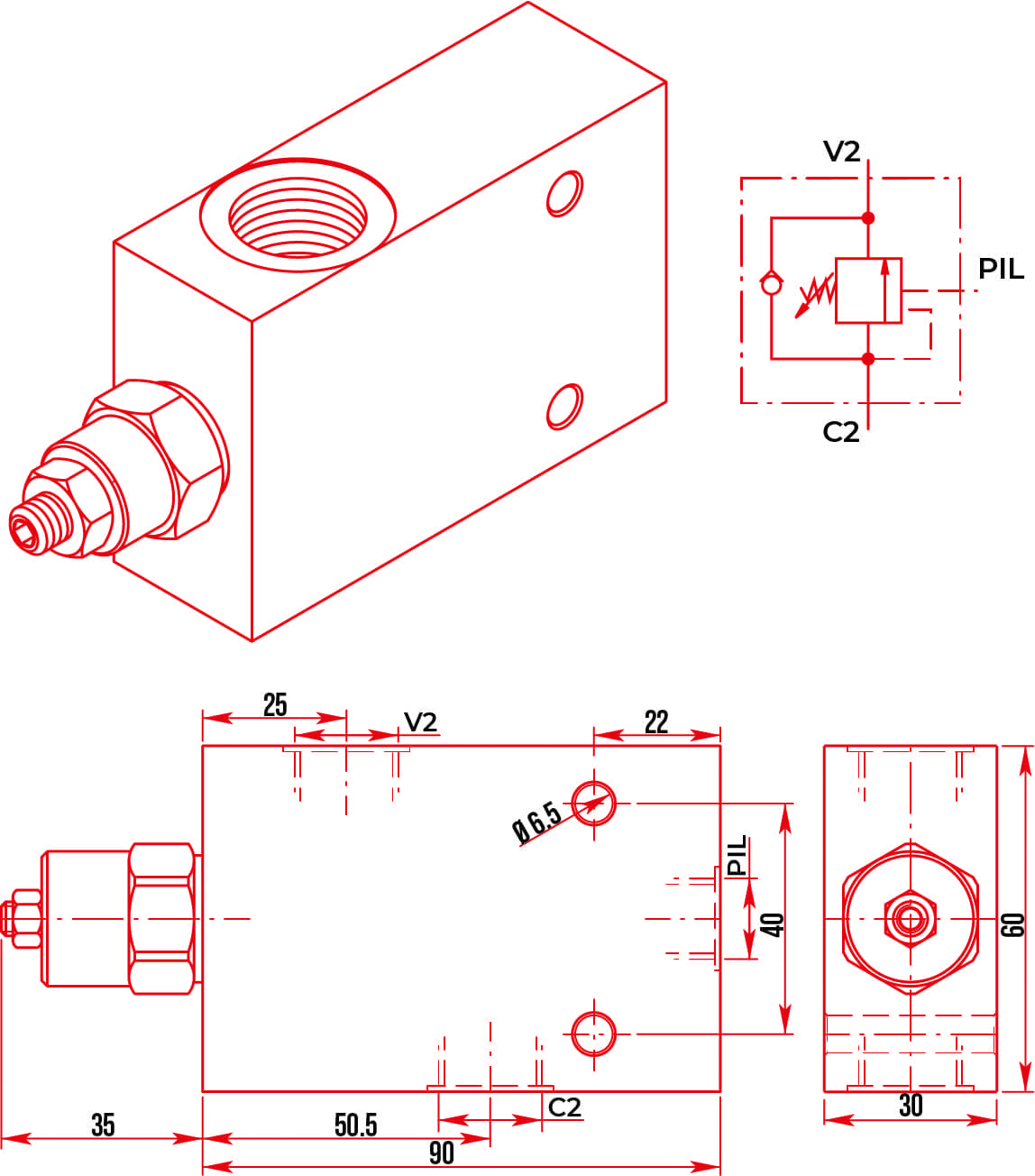

CBF OVC-SE — SINGLE OVERCENTRE
| Model Number | Ports | Max. Flow | Max. PRESSURE | LENGTH |
|---|---|---|---|---|
| CBFOVCSE3802 | 3/8” BSPP | 40 LPM | 350 Bar | 90 mm |
CBF Over Centre/Counterbalance
Single Overcentre Valve With External Pilot
Pilot Ratio: 4.25/1
01 White Spring Range 20 – 200 Bar, Factory Setting 100 Bar
02 Black Spring Range 50 – 350 Bar, Factory Setting 280 Bar
Additional information
| Brand |
|---|
