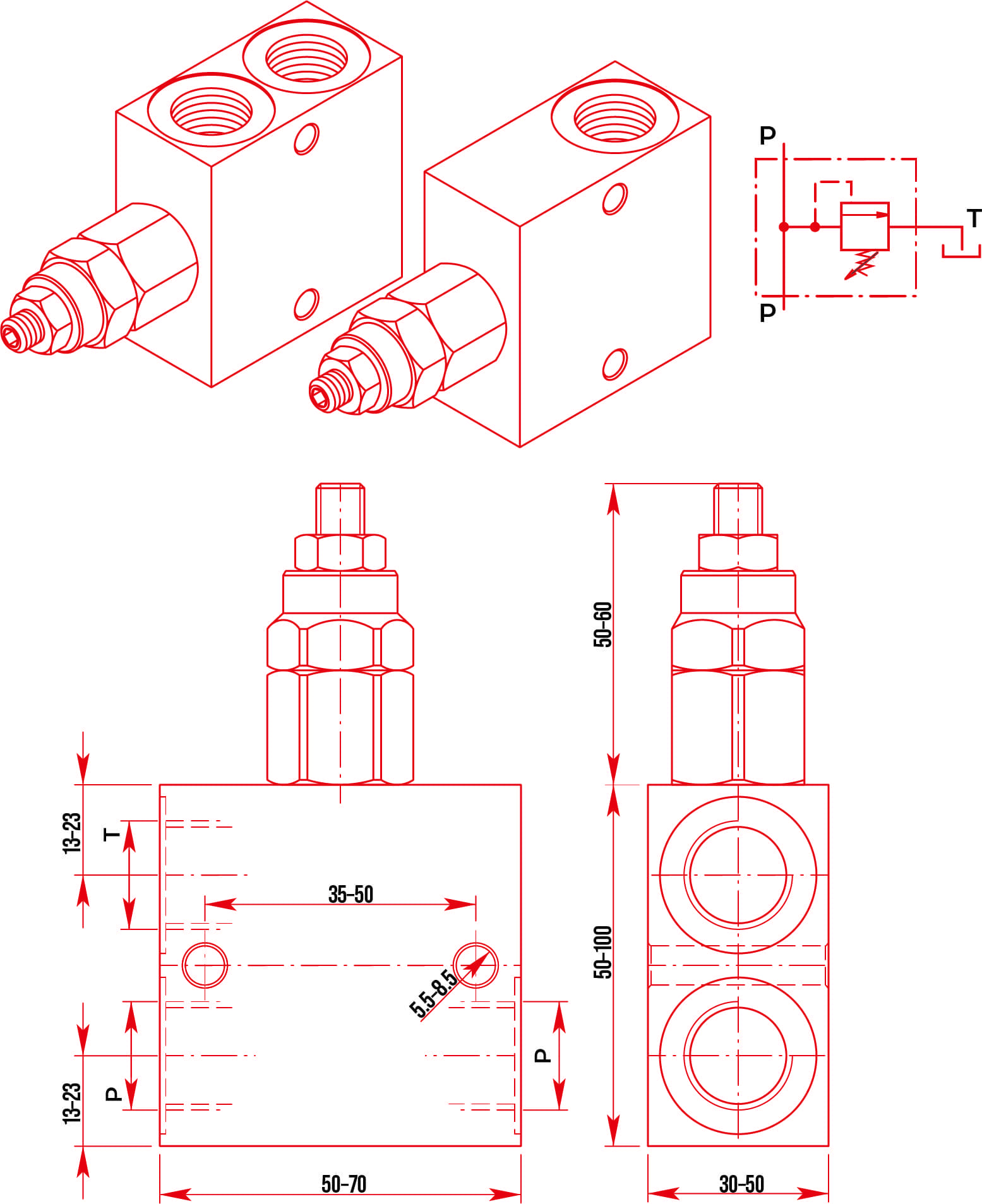

CBF VLP 3 Port Relief Valve PDF
Direct Acting Cartridge
Pressure Range:
01 White Spring Range 20 – 100 Bar, Factory Setting 80 Bar
02 Yellow Spring Range 40 – 250 Bar, Factory Setting 180 Bar
03 Black Spring Range 60 – 350 Bar, Factory Setting 250 Bar
| Model Number | Ports | Max. Flow | Max. PRESSURE | LENGTH |
|---|---|---|---|---|
| CBFVLP401402A | 1/4” BSPP | 25 LPM | 350 Bar | 50 mm |
| CBFVLP403802A | 3/8” BSPP | 35 LPM | 350 Bar | 60 mm |
| CBFVLP801202A | 1/2” BSPP | 80 LPM | 300 Bar | 70 mm |
| CBFVLP1303402A | 3/4” BSPP | 130 LPM | 300 Bar | 90 mm |
| CBFVLP1301002A | 1.0” BSPP | 130 LPM | 300 Bar | 100 mm |
| Brand |
|---|
Hose Burst Valve
Absolute Filtration: 25µ
Maximum Pressure: 350 Bar
Maximum Flow Range: 50 – 150 LPM
Dual Inline Over Centre Valve
Pilot Ratio: 4.25/1
01 White Spring Range 20 – 200 Bar, Factory Setting 100 Bar
02 Black Spring Range 50 – 350 Bar, Factory Setting 280 Bar
CBFVLP-DA 5 Port Crossline PDF
Dual Relief Valve With Make Up Check
Pressure Range:
01 White Spring Range 20 – 100 Bar, Factory Setting 80 Bar
02 Yellow Spring Range 40 – 250 Bar, Factory Setting 180 Bar
03 Black Spring Range 60 – 350 Bar, Factory Setting 250 Bar
