Description

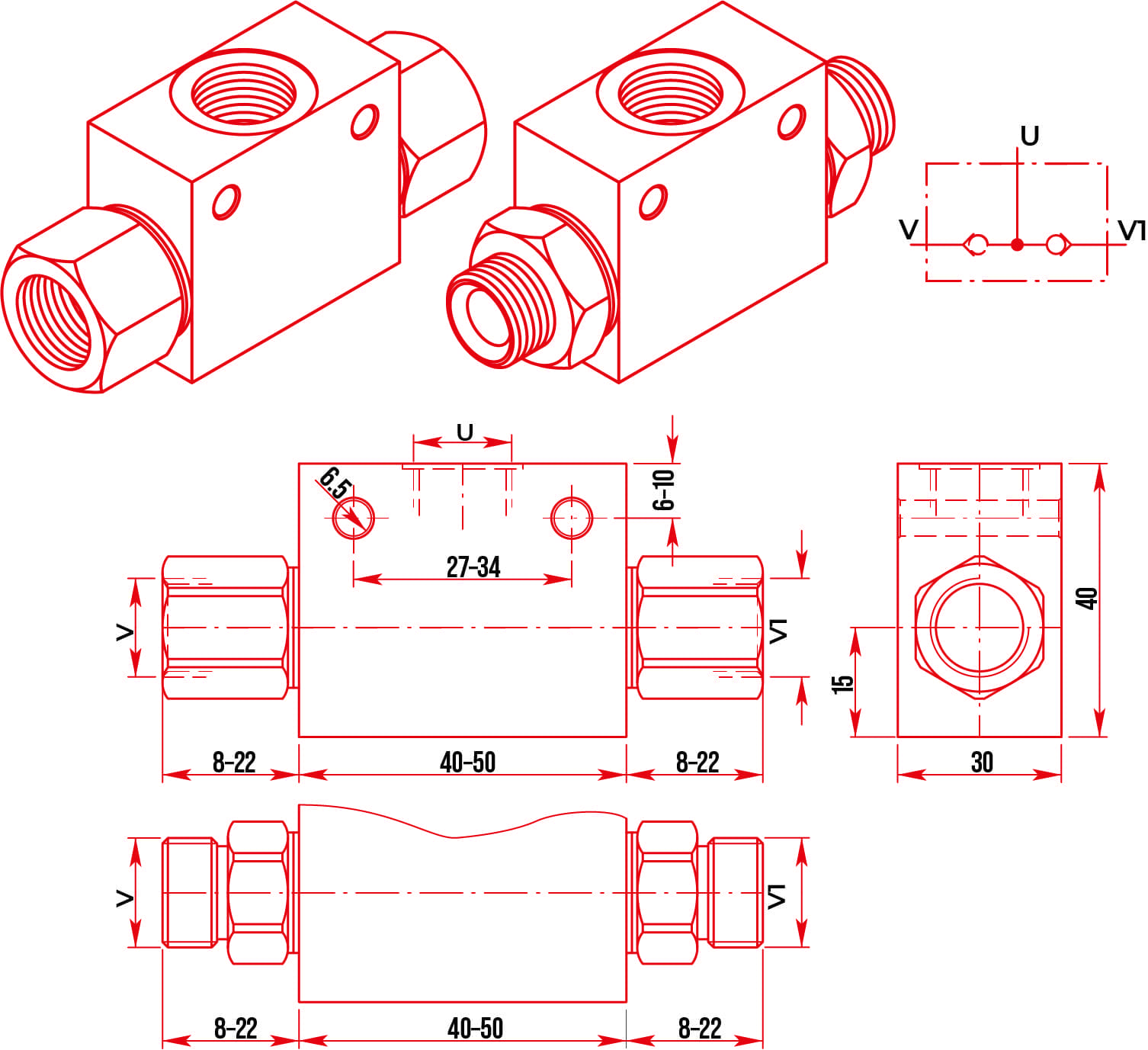

CBF VSF — shuttle valve
| Model Number | Ports | MAX. FLOW | Max. PRESSURE | LENGTH |
|---|---|---|---|---|
| CBFVSF14 | 1/4” BSPP | 20 LPM | 350 Bar | 40 mm |
| CBFVSF38 | 3/8” BSPP | 40 LPM | 350 Bar | 50 mm |
CBF SHUTTLE VALVE
Shuttle Valve
Absolute Filtration: 25µ
Pressure Range: 280 – 350 Bar
Maximum Flow Range: 20 – 100 LPM
Additional information
| Brand |
|---|
