Description
NEM SOLENOID LOCKING Valve
| MODEL NUMBER | DESCRIPTION |
|---|---|
| 1712023000-12V | 1/2” BSPP Locking Valve 12VDC |
| 1712023000-24V | 1/2” BSPP Locking Valve 24VDC |

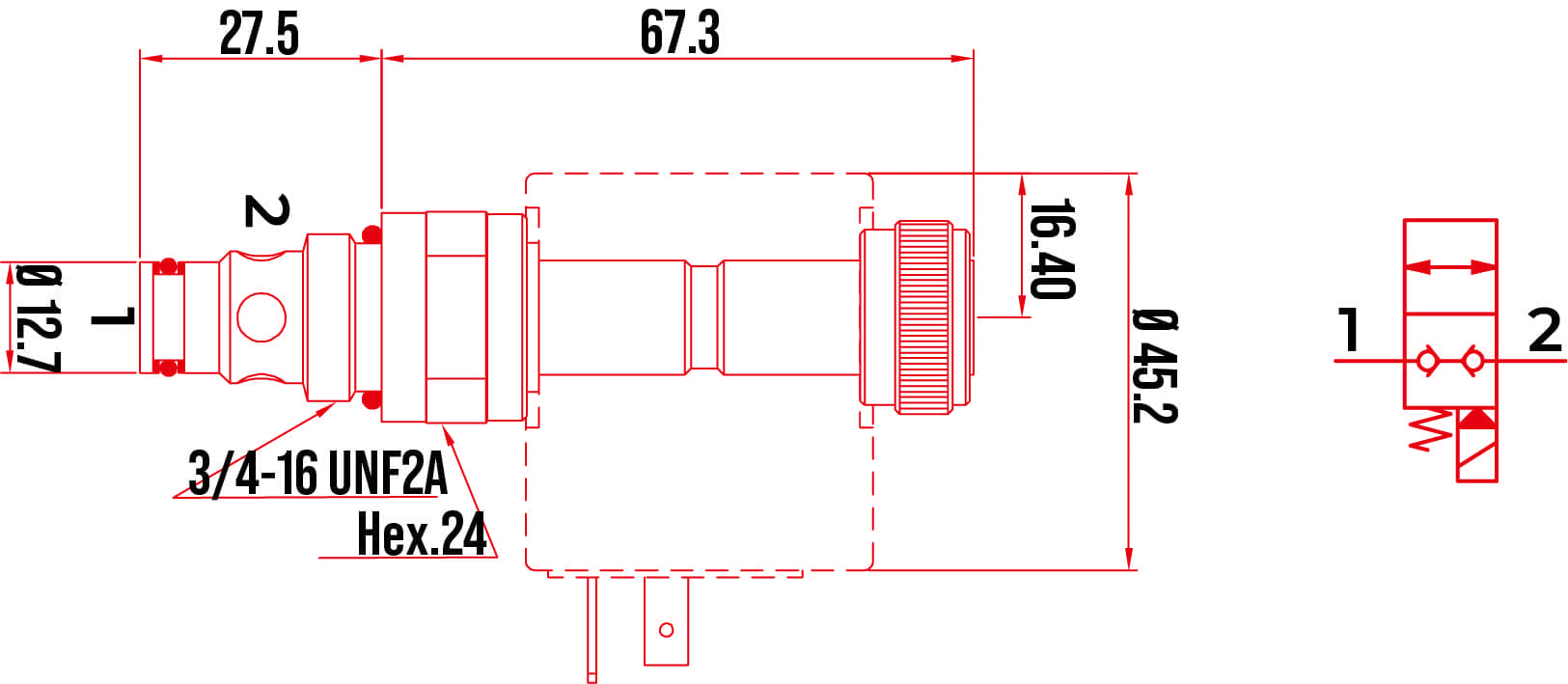

NEM Solenoid Locking Valves
NEM 0512100600 Locking Valve PDF
Flow Rate: 40 LPM
Maximum Working Pressure: 350 Bar
Seals: NBR & PTFE
2 Way 2 Position Electric Poppet Valve, Pilot Operated
