Description

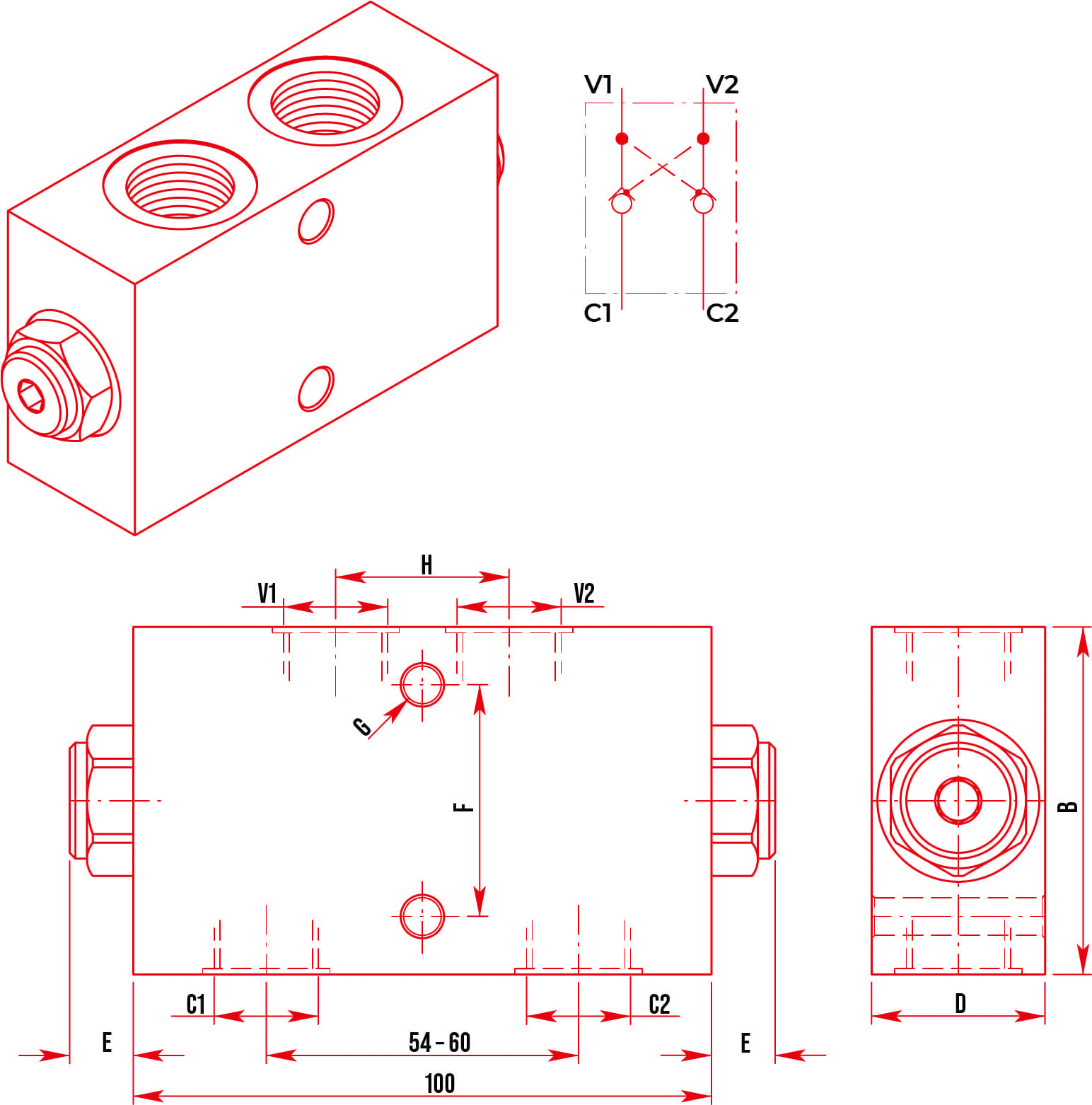

CBFVBD-L — Pilot Operated
| Model Number | Port | Max. Flow | Max. Pressure | Length (MM) |
|---|---|---|---|---|
| CBFVBDL38 | 3/8” BSPP | 35 LPM | 350 Bar | 100.0 |
| CBFVBDL12 | 1/2” BSPP | 50 LPM | 350 Bar | 100.0 |
PILOT OPERATED CHECK VALVE Dual POC
Maximum Operating Pressure: 350 Bar
Maximum Flow Rate: 35 LPM–50 LPM
Pilot Ratio: 4/1
In-Line Dual Pilot Operated Check Valve
