Description

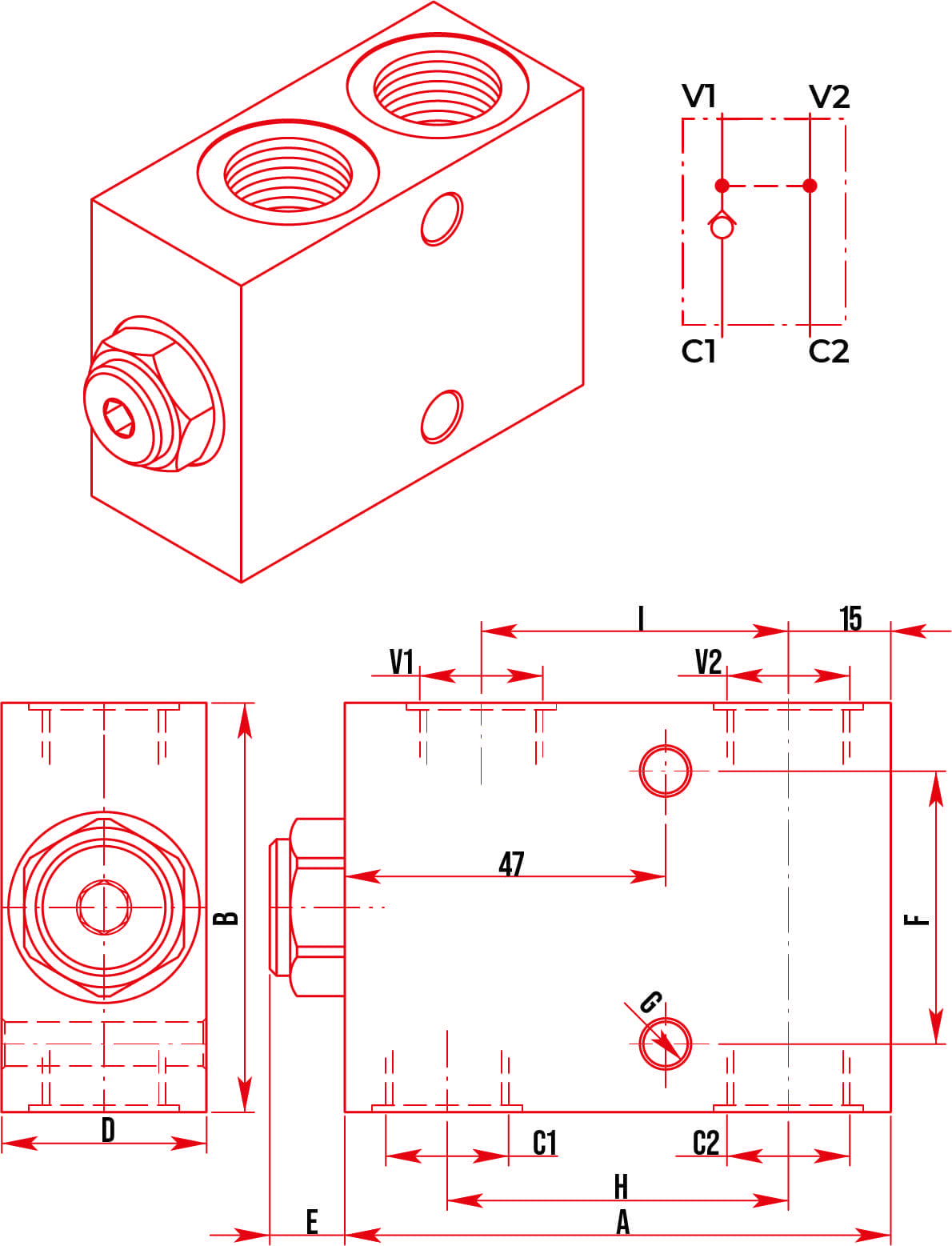

CBFVBL-S — Pilot Operated
| Model Number | Port | Max. Flow | Max. Pressure | Length (MM) |
|---|---|---|---|---|
| CBFVBSL38 | 3/8” BSPP | 35 LPM | 350 Bar | 80.0 |
| CBFVBSL12 | 1/2” BSPP | 50 LPM | 350 Bar | 80.0 |
PILOT OPERATED CHECK VALVE Single POC
Maximum Operating Pressure: 350 Bar
Maximum Flow Rate: 35 LPM–50 LPM
Pilot Ratio: 4/1
In-Line Single Pilot Operated Check Valve
Additional information
| Brand |
|---|
