Maximum Operating Pressure: 270 Bar
Maximum Flow Rate: 35 LPM–380 LPM
Absolute Filtration: 25µ

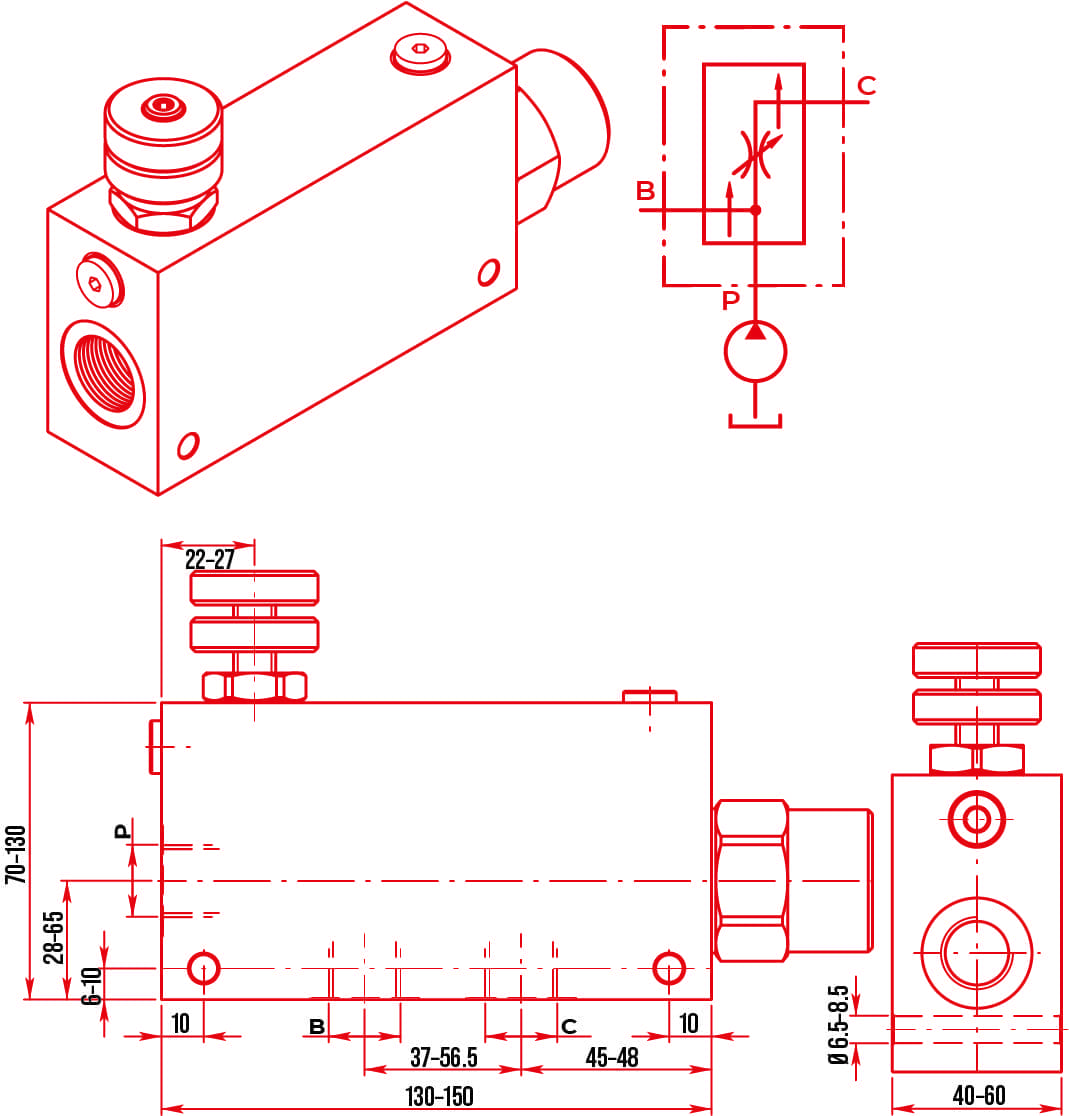

Three Ways Priority Flow Regulator Valve
| Model Number | Ports | Max. INLET Flow (Port P) | Max. OUTLET FLOW (Port C) | LENGTH |
|---|---|---|---|---|
| CBFRFPA38A | 3/8” BSPP | 60 LPM | 35 LPM | 130 mm |
| CBFRFPA12A | 1/2” BSPP | 90 LPM | 55 LPM | 130 mm |
| CBFRFPA34A | 3/4” BSPP | 150 LPM | 90 LPM | 155 mm |
| CBFRFPA10A | 1.0” BSPP | 380 LPM | 190 LPM | 150 mm |
| Brand |
|---|
9PCM Flow Control Valve Pressure Compensated Restricted Either Way
9PCCM Flow Control Valve Pressure Compensated Free Flow Return
Maximum Operating Pressure: 400 Bar
Opening Pressure: 0.5 Bar
Flow Rate: 15 LPM–80 LPM
CBFDFR Flow Divider Combiner PDF
Maximum Operating Pressure: 300 Bar
Maximum Flow Rate: 7 LPM–70 LPM
Flow Ratio 50% X 50%
Flow Divider Combiner
