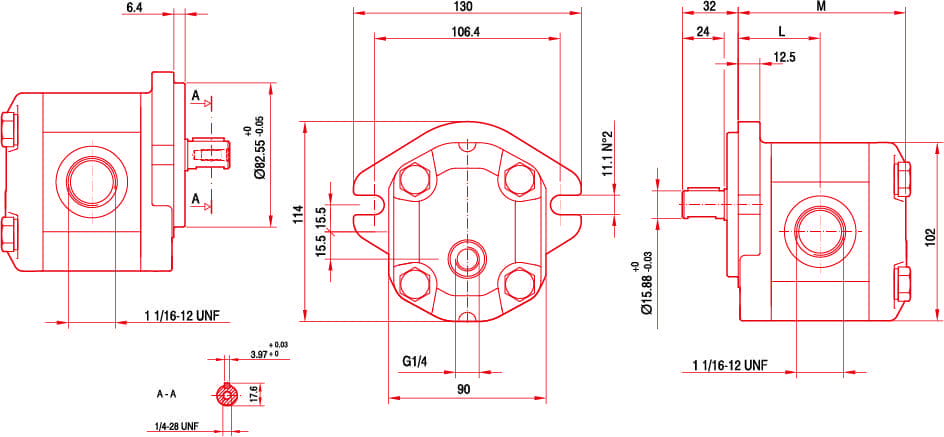

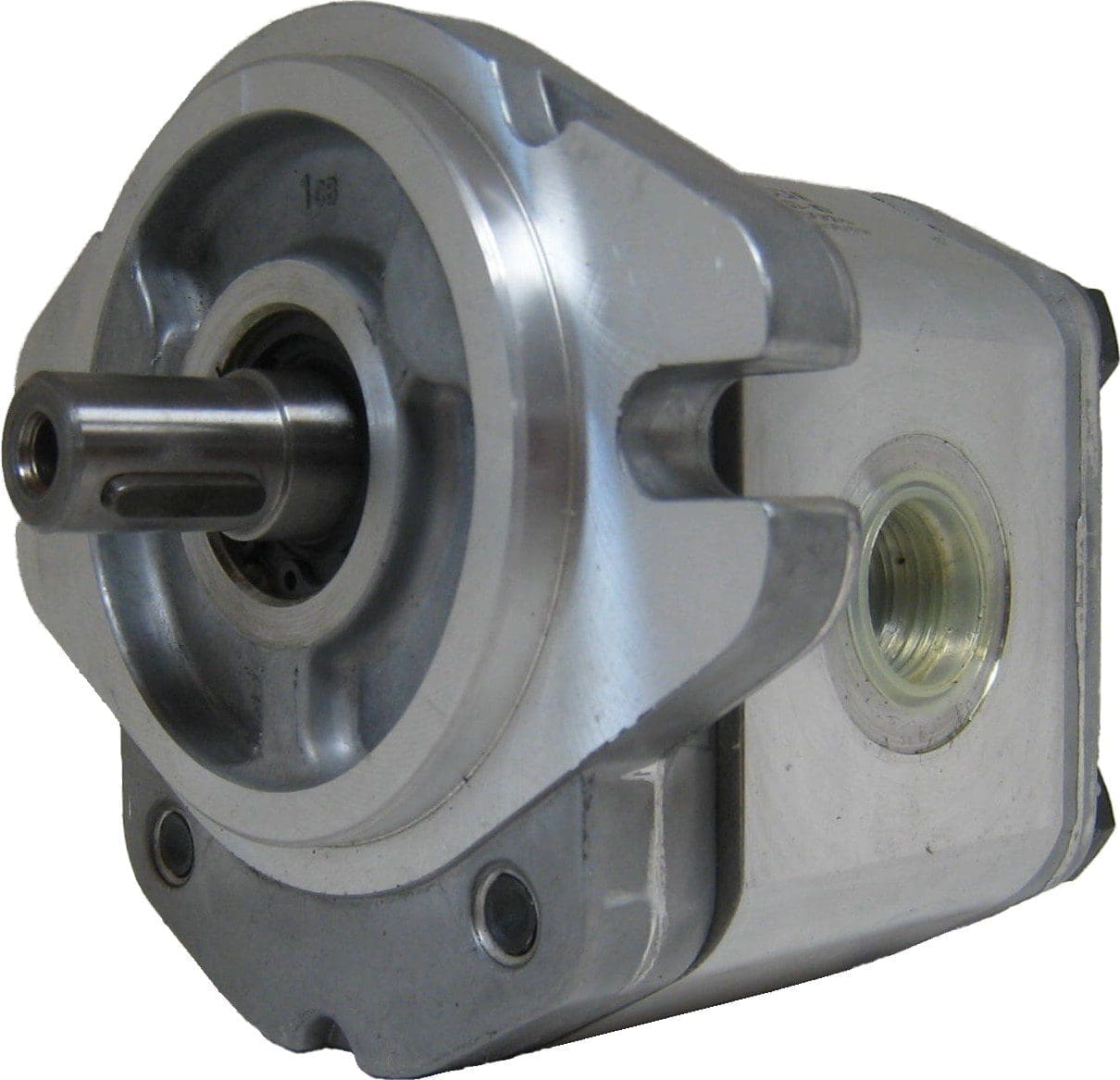

Sizes: 9.6cc/rev to 28.2cc/rev
Shaft: C1 ⅝’’ Parallel keyed 135Nm
S1 ⅝’’ 9 spline 185 Nm
Spigot: 3¼’’
Mount: SAE A 2 bolt
Ports; 1 1/16 ’’ x 1 1/16 ’’ uno
Drain port: ¼’’ BSPP
Bi- directional
| MODEL NUMBER | CC/REV | FLOW (LPH) | P1 MAX PRESS. | P2 MAX PRESS. | P3 MAX PRESS. |
|---|---|---|---|---|---|
| ALM2AR10E1 | 7.0 | 10.0 | 250 | 240 | 270 |
| ALM2AR13E1 | 9.6 | 13.7 | 250 | 240 | 270 |
| ALM2AR16E1 | 11.5 | 16.4 | 230 | 220 | 250 |
| ALM2AR20E1 | 14.1 | 20.1 | 230 | 220 | 250 |
| ALM2AR22E1 | 16.0 | 22.8 | 210 | 200 | 225 |
| ALM2AR25E1 | 17.9 | 25.5 | 210 | 200 | 225 |
| ALM2AR30E1 | 21.1 | 30.1 | 180 | 170 | 195 |
| ALM2AR34E1 | 23.7 | 33.7 | 180 | 170 | 195 |
| ALM2AR40E1 | 28.2 | 40.1 | 170 | 160 | 185 |
| PART NUMBER | ACCESSORIES – DESCRIPTION |
|---|---|
| 650230 | Seal Kit |
| Brand |
|---|
Shaft: C1 = ⅞” Parallel Keyed 450 Nm
S1 = ⅞” 13T Spline 600 Nm
Spigot: 4.0”
Mount: SAE B 2 Bolt
Ports: SAE Code 61
Drain Port: ¼” BSPP
Sizes: 2.8–6.2cc/rev
Shaft: TO 1.8 taper 100 Nm 3mm key
Spigot: 30mm
Mount: 4 bolt 73mm x 56mm
Ports: ½’’ BSPP
Drain Port: ¼’’ BSPP
Bi- directional
Displacement: 4.5–28.2cc/rev.
Maximum Speed: 2,500–4,000rpm.
Flow Rate: 6.4–40.1LPM.
Standard ports: M8 Threads depth 17 mm.
G1/4 drain port thread depth 12 mm.
