Description

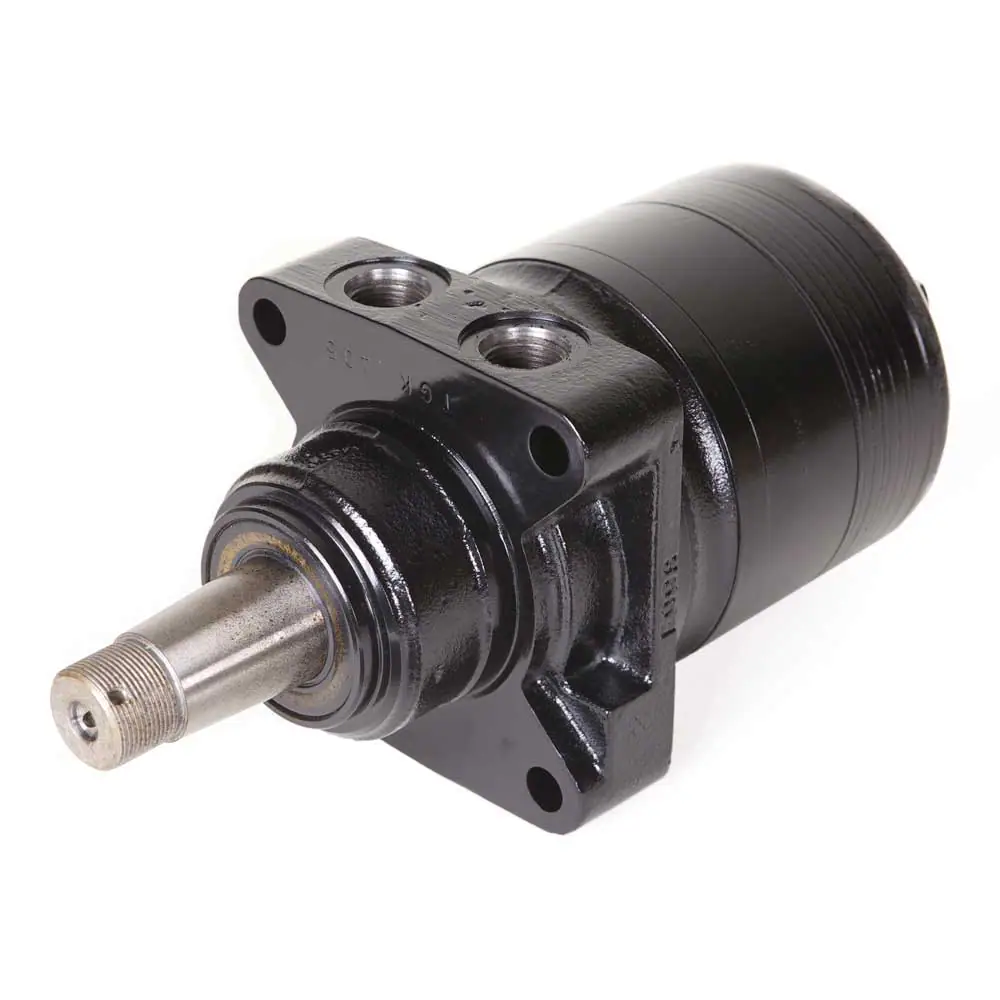

Standard Build: 4 Bolt Magneto Mount 1 1/4’’ Keyed Shaft 7/8’’ UNO Ports
Motors: 625 / 785 / 960 Have 1 3/8’’ Keyed Shafts

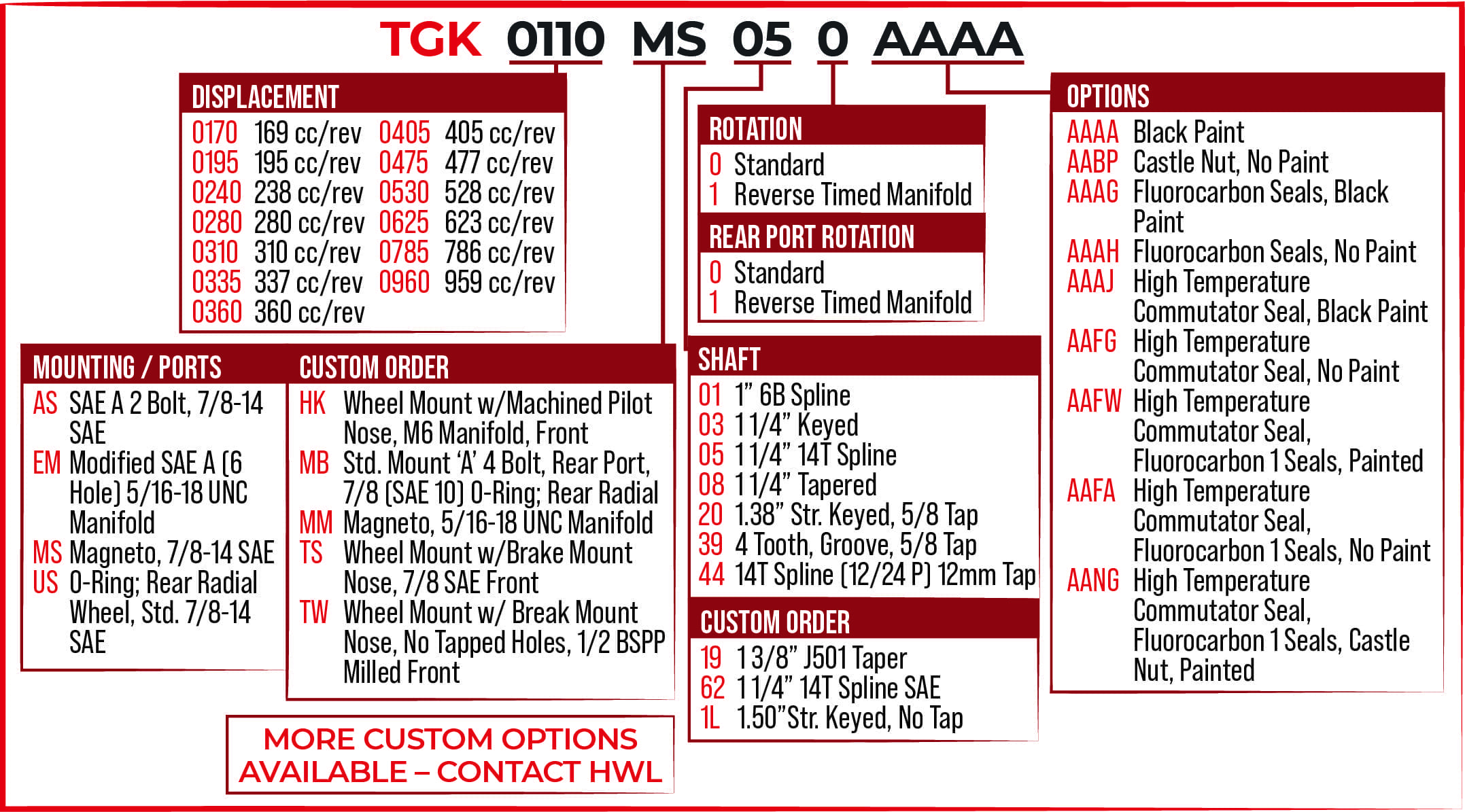

TGK SERIES ADDER OPTIONS
| PART NUMBER |
DESCRIPTION – ADD ON SHAFT OPTIONS |
CODE |
| TGK019004 |
1″ 6B Spline |
01 |
| TGK019013 |
1 1/4″ Parallel Keyed |
03 |
| TGK019008 |
1 1/4″ 14T Spline |
05 |
| TGK019002 |
1 1/4″ Tapered |
08 |
| TGK019007 |
1 3/8″ Tapered |
19 |
| TGK019016 |
1 3/8″ Parallel Keyed |
20 |
| TGK019009 |
14T (12/24) Groove 12mm Tap |
44 |
| TGK019005 |
32mm Keyed |
46 |
| PART NUMBER |
DESCRIPTION – Add on Mount Options |
CODE |
| TGK012011A1 |
4 Bolt Magneto—Front Port |
MS |
| TGK012011A1 |
Wheel Mount–Standard—Front Ports |
US |
| TGK012010A1 |
2 Bolt Mount, UNO Ports—Front Ports |
AS |
SPARE PARTS
| CODE NUMBER |
DESCRIPTION — EXTRAS |
| SK000323 |
TGK Seal Kit |
| SK000324 |
TGK Seal Kit Viton |
| BK000323 |
Bearing Kit TGK |
