Maximum Speed: 2500 RPM

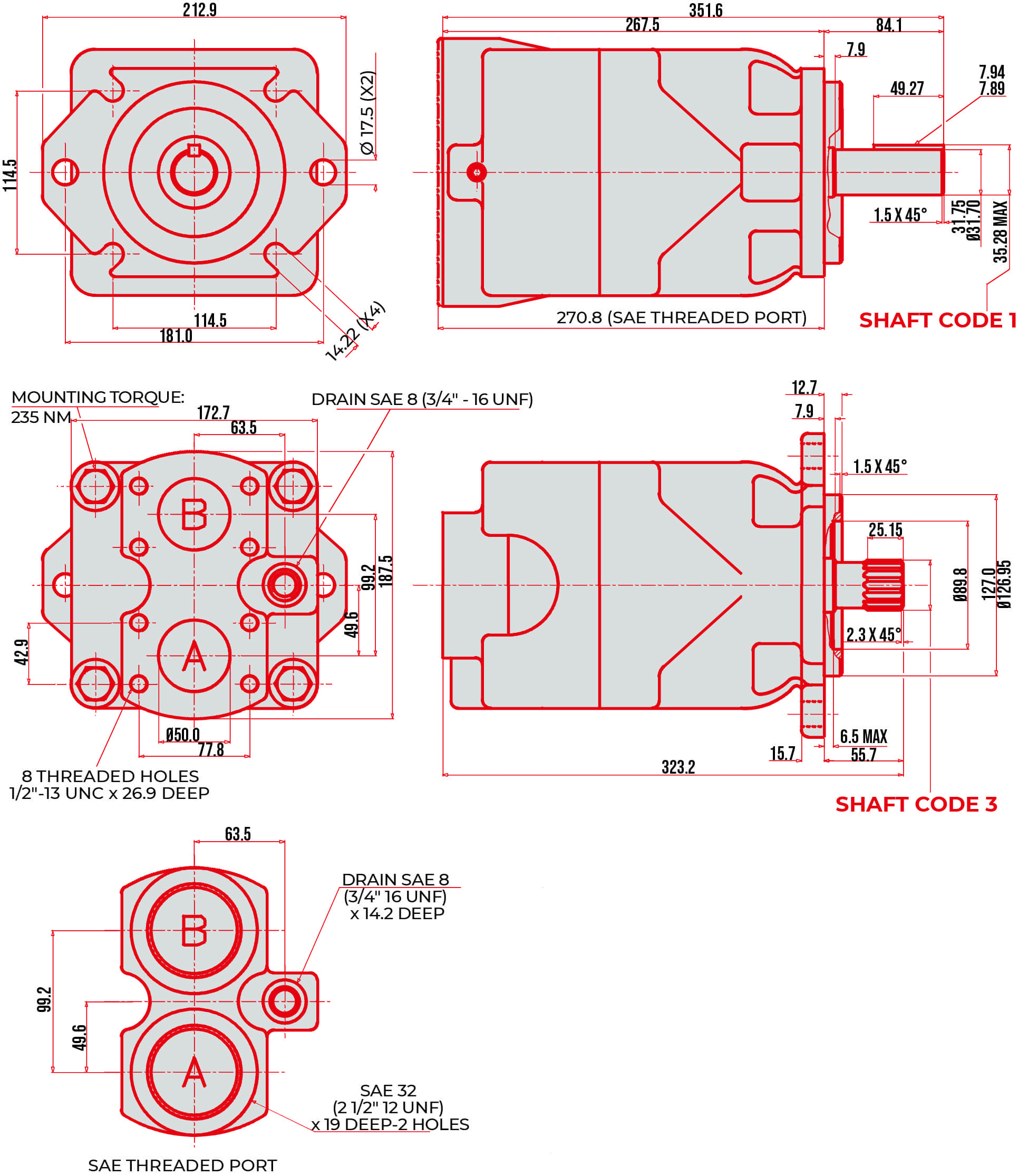

Mount: SAE C – 2 & 4 Bolt
Shaft: 1 1/4” Parallel (SAE C)
Ports: Pressure: 2” Code 61 | Drain: 3/4”-16 UNF

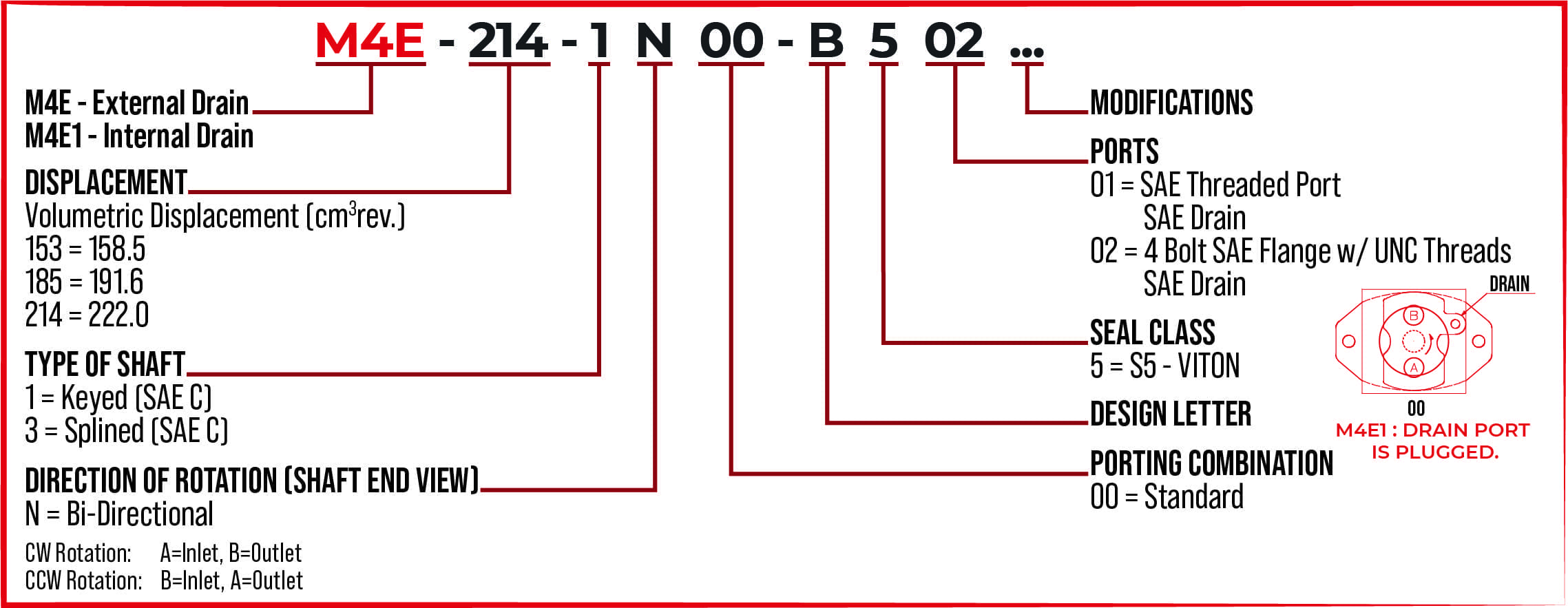

| Ring Size | Displacement cm3/rev | INPUT FLOW (THEORETICAL) | INPUT FLOW (@ 175 BAR) | TORQUE @ 2000 RPM @ 175 BAR | POWER OUTPUT @ 175 BAR |
|---|---|---|---|---|---|
| M4E153 | 158.5 | 317 LPM | 343 LPM | 398 NM | 83.4 KW |
| M4E185 | 191.6 | 383 LPM | 409 LPM | 484 NM | 101.4 KW |
| M4E214 | 222.0 | 444 LPM | 470 LPM | 567 NM | 188.8 KW |
| PART NUMBER | ACCESSORIES — DESCRIPTION |
|---|---|
| S14-42336-5 | M4E Seal Kit S5 |
| Brand |
|---|
Maximum Speed: 2500 RPM
Mount: SAE C – 2 & 4 Bolt
Shaft: 1 1/4”-14T Splined (SAE C)
Ports: Pressure: 1 1/4” Code 61 | Drain: 3/4”-16 UNF
Maximum Speed: 3000 RPM
Mount: SAE A – 2 Bolt
Shaft: 3/4” Parallel Keyed
Ports: Pressure: 3/4” BSPP | Drain: 3/8” BSPP
