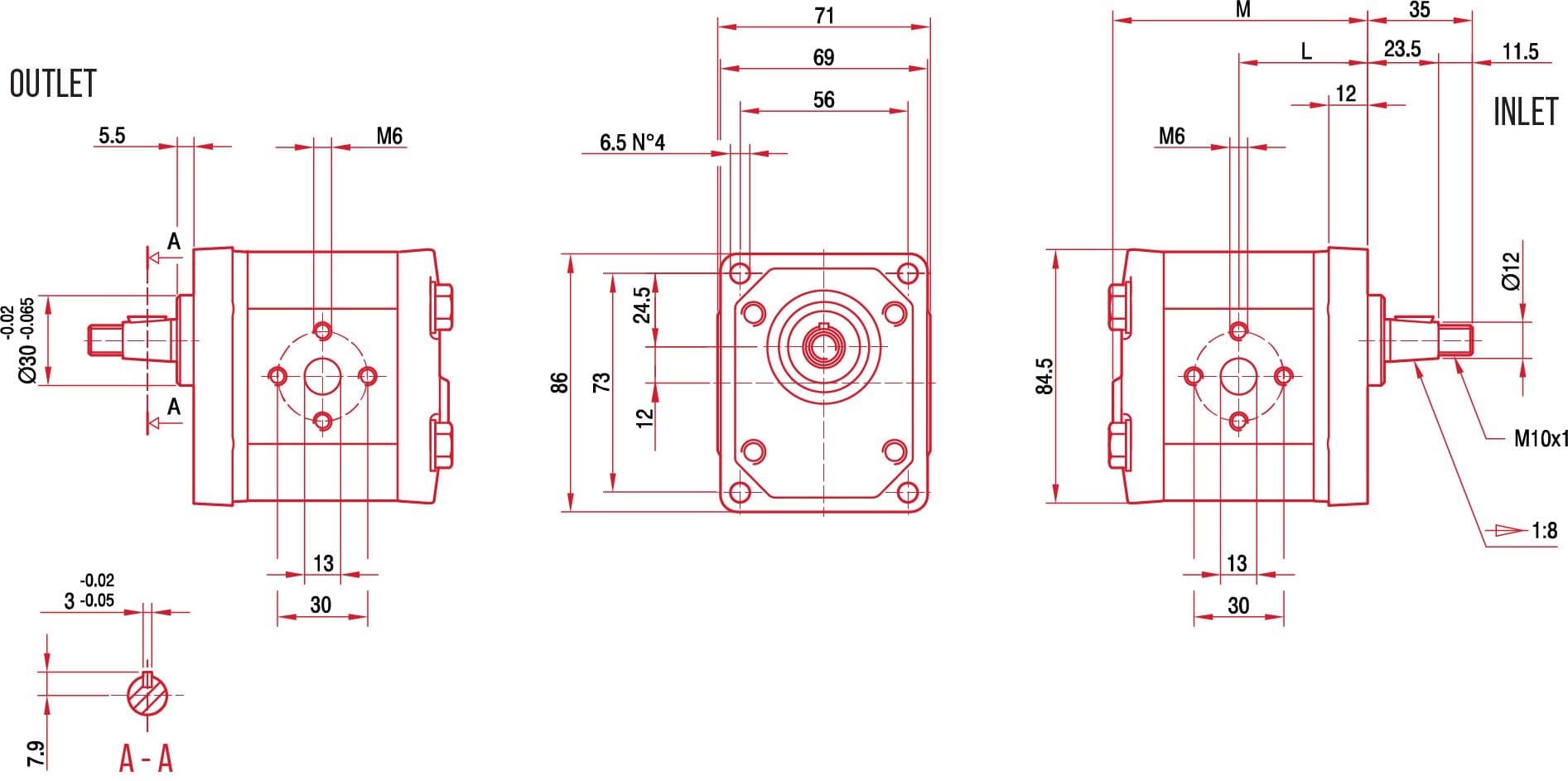

Sizes: 1.4–6.2cc/rev
Shaft: 1.8 taper 100 Nm
Spigot: 30mm
Mount: Euro 4 bolt 73 x 56mm
Ports: PCD 30 x 30
| MODEL NUMBER | CC/REV | MAX. RPM | P1 MAX PRESS. | P2 MAX PRESS. | P3 MAX PRESS. |
|---|---|---|---|---|---|
| GHP1D2 | 1.4 | 6000 | 270 | 290 | 310 |
| GHP1D3 | 2.1 | 6000 | 270 | 290 | 310 |
| GHP1D4 | 2.8 | 5000 | 270 | 290 | 310 |
| GHP1D5 | 3.5 | 5000 | 270 | 290 | 310 |
| GHP1D6 | 4.1 | 4000 | 270 | 290 | 310 |
| GHP1D7 | 5.2 | 4000 | 260 | 275 | 290 |
| GHP1D9 | 6.2 | 3800 | 260 | 275 | 290 |
| PART NUMBER | ACCESSORIES – DESCRIPTION |
|---|---|
| 601564 | Relief Valve–Rear Cover Relieving To Suction |
| 650221 | Seal Kit |
| 650222 | Viton Seal Kit |
| Brand |
|---|
Marzocchi GRP2 Multi ALPA2 PDF
Sizes: 4.5–28.2cc/rev
Shaft Euro: 1.8 taper 150 Nm 4mm key
Shaft SAE: C1 ⅝’’ parallel key 135Nm
S1 ⅝’’ 9 spline 135Nm
Mount Euro: 4 bolt 96mm x 71.55mm
Mount SAE: 2 Bolt A
PCD Ports
Size: 4.2cc/rev to 26.1cc/rev
Shaft: P60 = ⅝’’ parallel keyed 135 Nm
S90 = ⅝’’ 9 spline 185Nm
Spigot: 3 ¼’’
Mount: SAE A 2 bolt
Ports: BG20-04 – 08 suction 7/8’ pressure 7/8’ UNO
BG20-11 – 26 suction 1 1/16 ’ pressure 7/8’ UNO
Size: 4.2cc/rev to 26.1cc/rev
Shaft: T3 1.8 taper 150 Nm
3.2mm Key
Spigot: 36.5mm
Mount: Euro 4 bolt 96 x 71.55 mm
Ports: BG20 4-8 30 x 30 PCD
BG20 11-26 40 x 30 PCD
