Description
D = CW Rotation
S = CCW Rotation

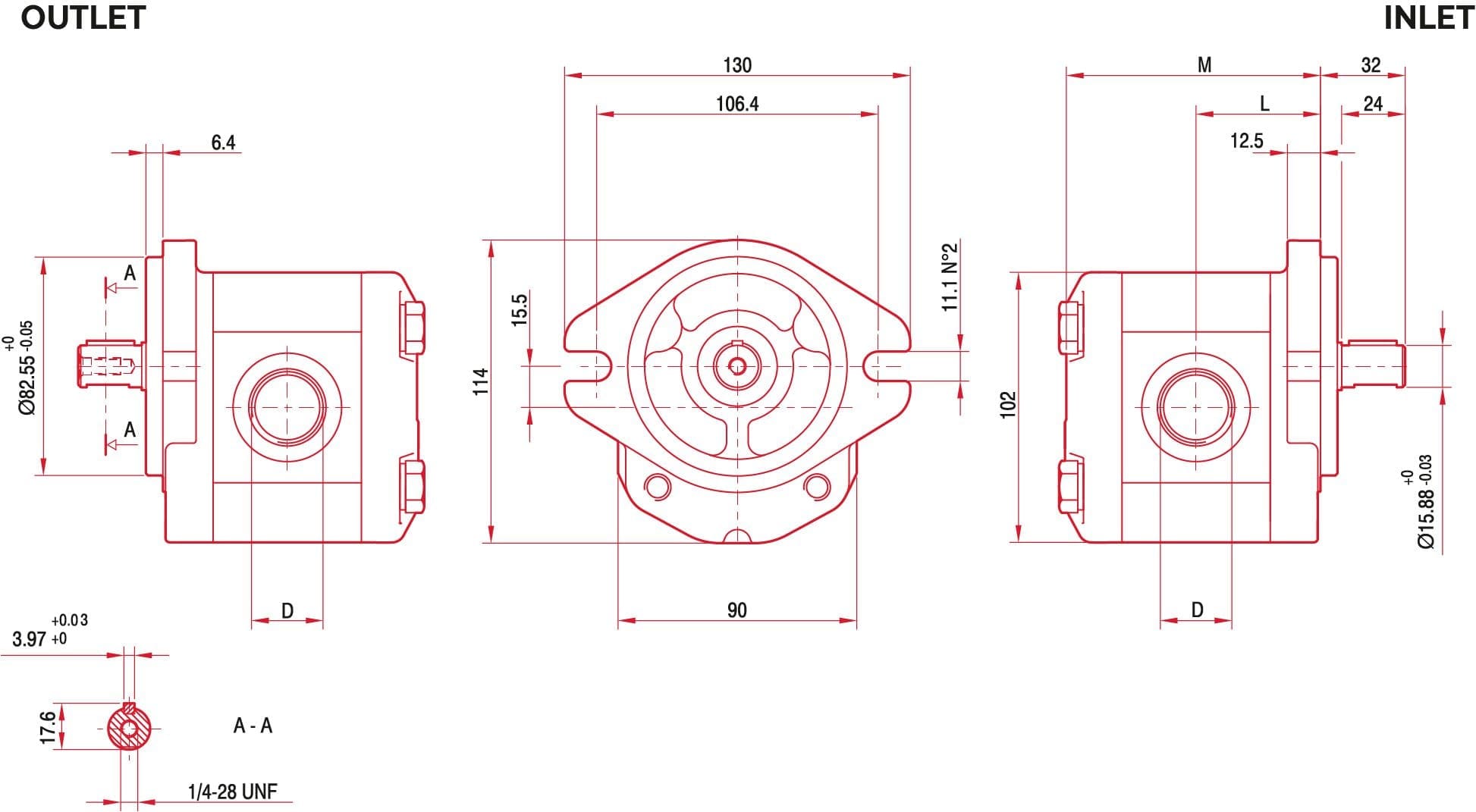

ALP2AD6–40 Suction 1 1/16 Pressure 7/8″
ALP2AD50 Suction 1 1/16″ Pressure 1 1/16″

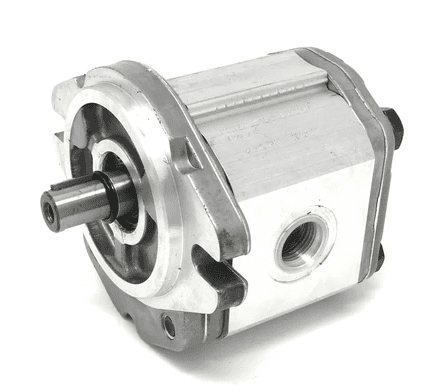

ALP2A GROUP 2 SAE
| MODEL NUMBER |
CC/REV |
MAX. RPM |
P1 MAX PRESS. |
P2 MAX PRESS. |
P3 MAX PRESS. |
| ALP2AD6 |
4.5 |
4000 |
250 |
270 |
290 |
| ALP2AD9 |
6.4 |
4000 |
250 |
270 |
290 |
| ALP2AD10 |
7.0 |
4000 |
250 |
270 |
290 |
| ALP2AD12 |
8.3 |
3500 |
250 |
270 |
290 |
| ALP2AD13 |
9.6 |
4000 |
250 |
270 |
290 |
| ALP2AD16 |
11.5 |
4000 |
230 |
250 |
270 |
| ALP2AD20 |
14.1 |
3200 |
230 |
250 |
270 |
| ALP2AD22 |
16.0 |
2800 |
210 |
225 |
240 |
| ALP2AD25 |
17.9 |
2500 |
210 |
225 |
240 |
| ALP2AD30 |
21.1 |
2200 |
180 |
195 |
210 |
| ALP2AD34 |
23.7 |
2000 |
180 |
195 |
210 |
| ALP2AD40 |
28.2 |
1800 |
170 |
185 |
200 |
| ALP2AD50 |
35.2 |
2000 |
140 |
155 |
170 |
SPARE PARTS
| PART NUMBER |
ACCESSORIES – DESCRIPTION |
| 601615 |
Relief Valve–Rear Cover Relieving To Suction |
| 650226 |
Seal Kit |
| 650227 |
Viton Seal Kit |
