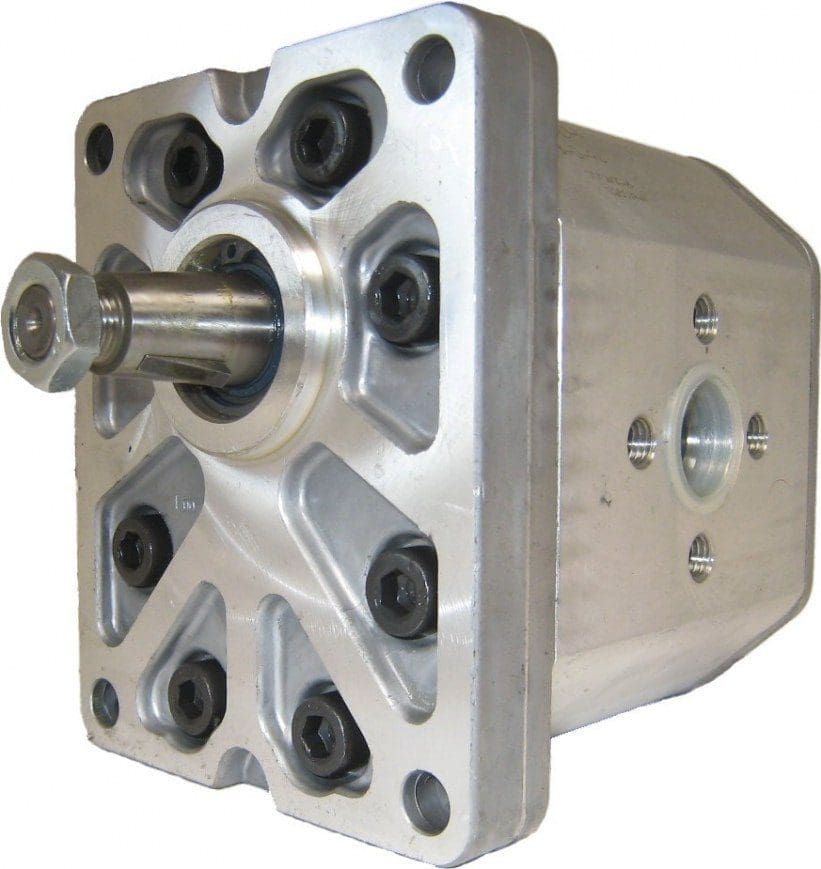

Marzocchi Group 3 Euro

Marzocchi ALP3 GRP3 Euro PDF

Sizes: 20–87cc/rev
Shaft: TO 1.8 taper 250 Nm
Spigot: 50.8mm
Mount: Euro 4 bolt 128 x 98.5mm

Category:

Description

Ports: PCD
ALP3D30—80: 56 x 56 PCD
ALP3D66: 51 X 51 PCD
ALP3D94—135: 51 X 62 PCD

ALP3 GROUP 3 EURO

MODEL NUMBER CC/REV MAX. RPM P1 MAX PRESS. P2 MAX PRESS. P3 MAX PRESS.
ALP3D30 30 3500 230 250 270
ALP3D33 22 3500 230 250 270
ALP3D40 26 3000 230 250 270
ALP3D50 33 3000 230 250 270
ALP3D60 39 3000 230 250 270
ALP3D66 44 2800 210 230 250
ALP3D80 52 2400 200 215 230
ALP3D94 61 2800 190 205 220
ALP3D110 71 2500 170 185 200
ALP3D120 78 2300 160 175 190
ALP3D135 87 2000 140 155 170

SPARE PARTS

PART NUMBER ACCESSORIES – DESCRIPTION
650231 Seal Kit
650232 Viton Seal Kit
