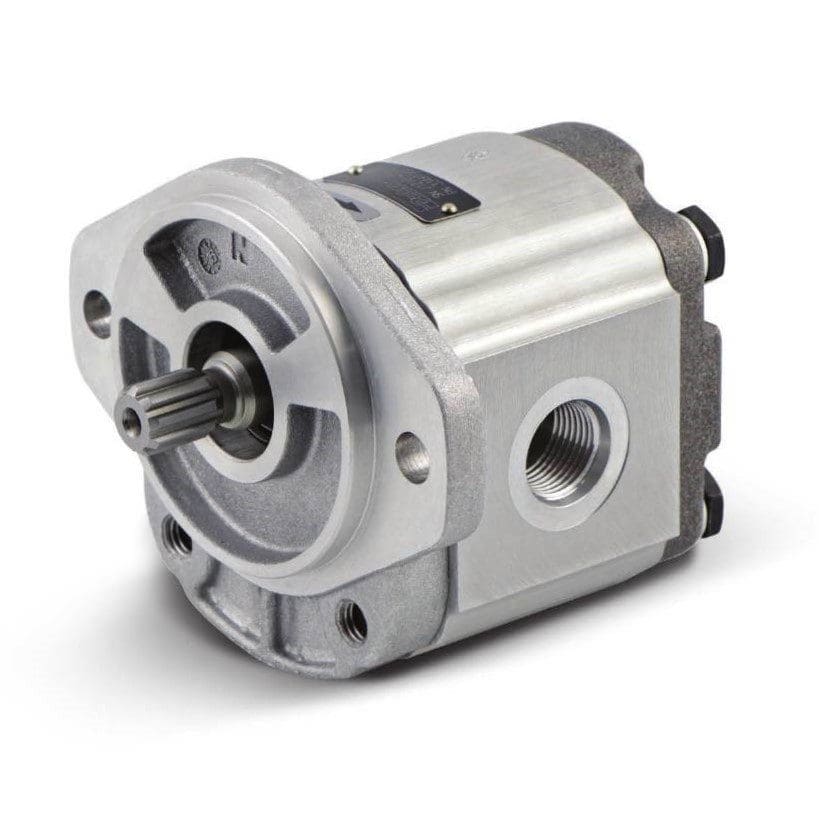

Parker PGP511 Series

Parker PGP/PGM511 Catalogue PDF

Shaft: SAE Splined OR Keyed
Spigot: 3 ¼”
Mount: SAE A 2 Bolt
Maximum Operating Pressure: 3625 PSI

Description

ORDERING OPTIONS

MOUNT:

SAE A 2 Bolt
SAE B 2 Bolt
4 Bolt Euro
German 2 Bolt 50mm Spigot

SHAFT OPTIONS:

17mm 10T Spline
3/4” 11T
3/4” Keyed
5/8” 9T
9T DIN
1:8 Tapered

SIDE PORTS:

1-1/16” x 7/8” UNO 14cc–22cc
1-5/16” x 1-1/16” UNO 24cc–33cc
¾” X 1” Code 61 Flange

REAR PORTS:

Rear Ports Available in Sizes 19-23-27-31cc
Suction = 1 1/16”
Pressure = 7/8 UNO

SIDE & REAR PORTS HAVE THE OPTION TO BE MACHINED TO REQUIREMENT.

P511 GROUP 2

MODEL CC/REV MAX. RPM P1 MAX. PRESS. P2 MAX. PRESS. INPUT POWER (HP)
0060 6.0 3500 275 300 6.03
0080 8.0 3500 275 300 8.05
0100 10.0 3500 275 300 10.06
0110 11.0 3500 275 300 11.13
0140 14.0 3500 275 300 14.08
0160 16.0 3500 275 300 14.09
0190 19.0 3250 250 275 19.18
0230 23.0 2750 225 245 19.71
0270 27.0 2350 190 210 20.12
0310 31.0 2100 165 180 22.40
0330 33.0 2000 155 270 23.20

SPARE PARTS

PART NUMBER ACCESSORIES – DESCRIPTION
8611-023-00N Seal Kit – Nitrile
8611-023-00V Seal Kit – Viton
