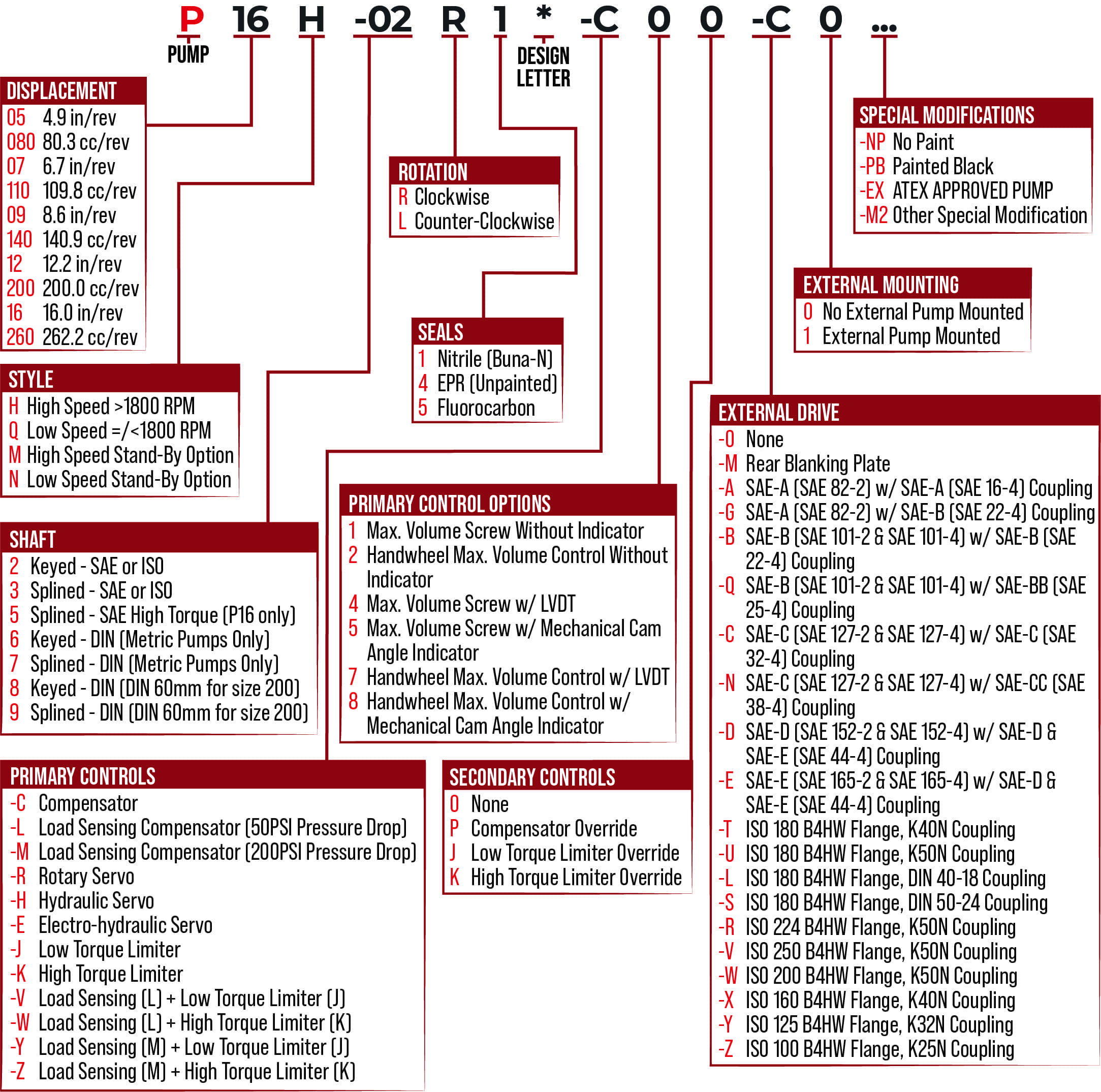

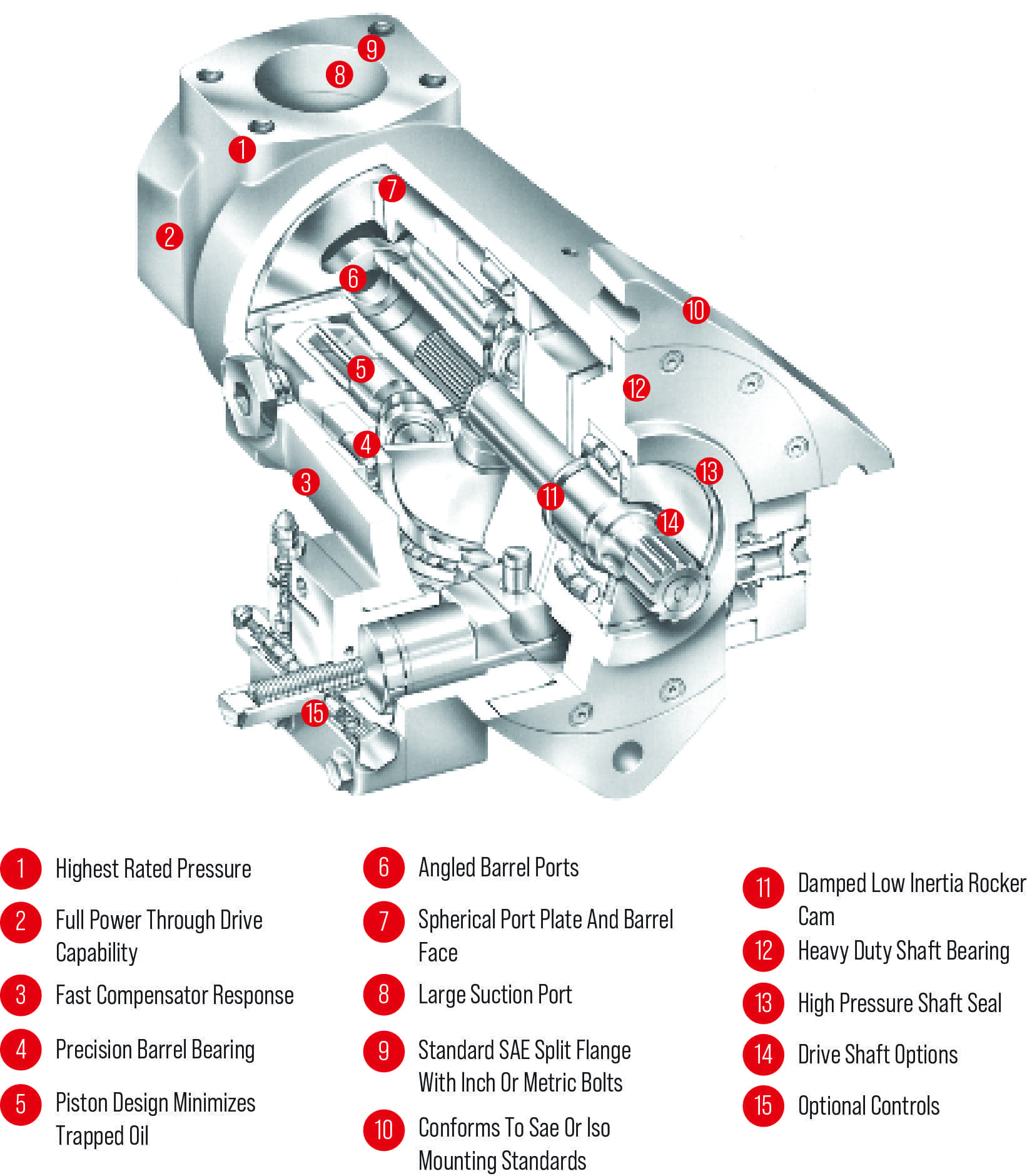

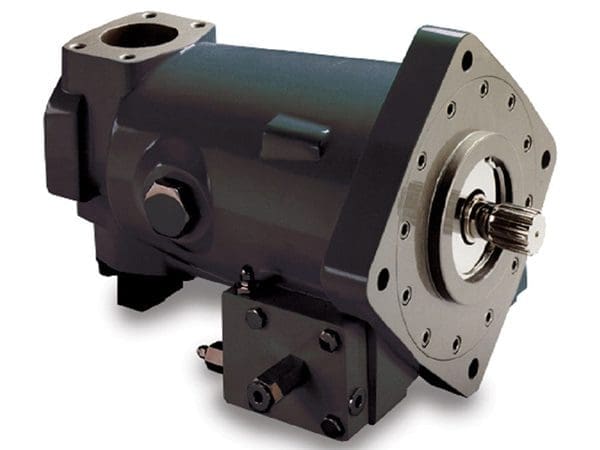

Denison Premier Piston Pump PDF
Max. Displacement: 260 cc/rev
Max. Flow : 548 LPM
Operating Pressure: 420 Bar/6000 PSI
Mount & Shaft Type: SAE, ISO, DIN
Port Type: Flange, Opposing, SAE, ISO
| MODEL SERIES | CC/REV | Max. Cont. pressure (PSI) | Max. Speed (RPM) | Rear output torque (Nm) | Case pressure cont. |
|---|---|---|---|---|---|
| P05/080 | 80.3 | 6000 | 2550 | 639-646 | 25 PSI |
| P07/110 | 109.8 | 6000 | 2450 | 900 | 25 PSI |
| P09/140 | 140.9 | 6000 | 2300 | 1118 | 25 PSI |
| P12/200 | 200.0 | 6000 | 2100 | 1559 | 25 PSI |
| P16/260 | 262.2 | 6000 | 1850 | 1537-2192 | 25 PSI |
| Brand |
|---|
Continuous Pressure Up To: 320 Bar
Thru-Shaft Capability
Adjustable Maximum Volume Stop
Displacements From: 60 – 145 cc/rev
Maximum Outlet Pressure: 5000 psi
Continuous Pressure-350bar
Spherical Pistons-High Speeds
Laminated Pistons-Low Leakage
6 Stocked Capacities from 25.6cc/rev to 102.9cc/rev
Clockwise Rotation
Rear Ports
Shaft: B8x32x36 DIN 5462 (ISO14)
Parker P1 Medium Pressure Axial Piston Pump PDF
Medium Pressure, Continuous Operation
Compact, Quiet And Efficient Control
Wide Temperature Range Suitable For Mobile Applications
