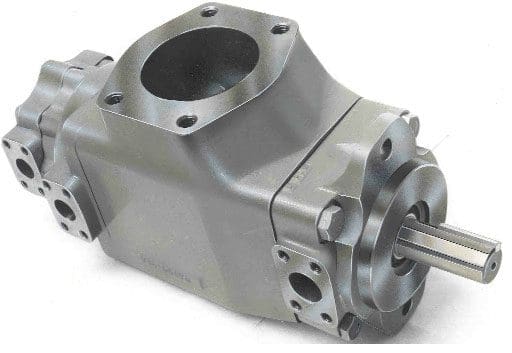

Parker Denison Triple Vane | T67DCC & T6DCCM

Parker Denison T67DCC PDF

Displacements from 47.6 cc – 190.5 cc ( D Frame) 10.8 cc – 100 cc ( C Frame)
Operating pressure up to 300 Bar (250 Bar Continuous)

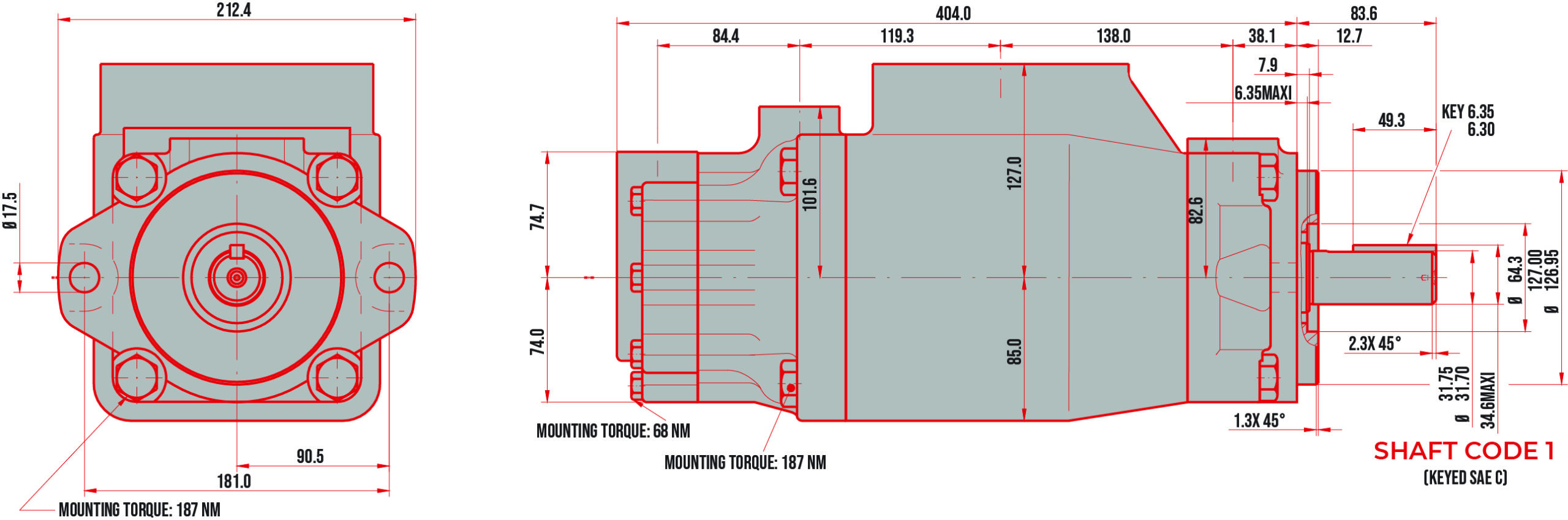

Mount: 2 Bolt SAE C (5” Spigot)
Shaft: 1-1/4” Parallel Keyed
1-1/2” Parallel Keyed
14T x 1-1/4” Spline
17T x 1-1/2” Spline

Category:

Description

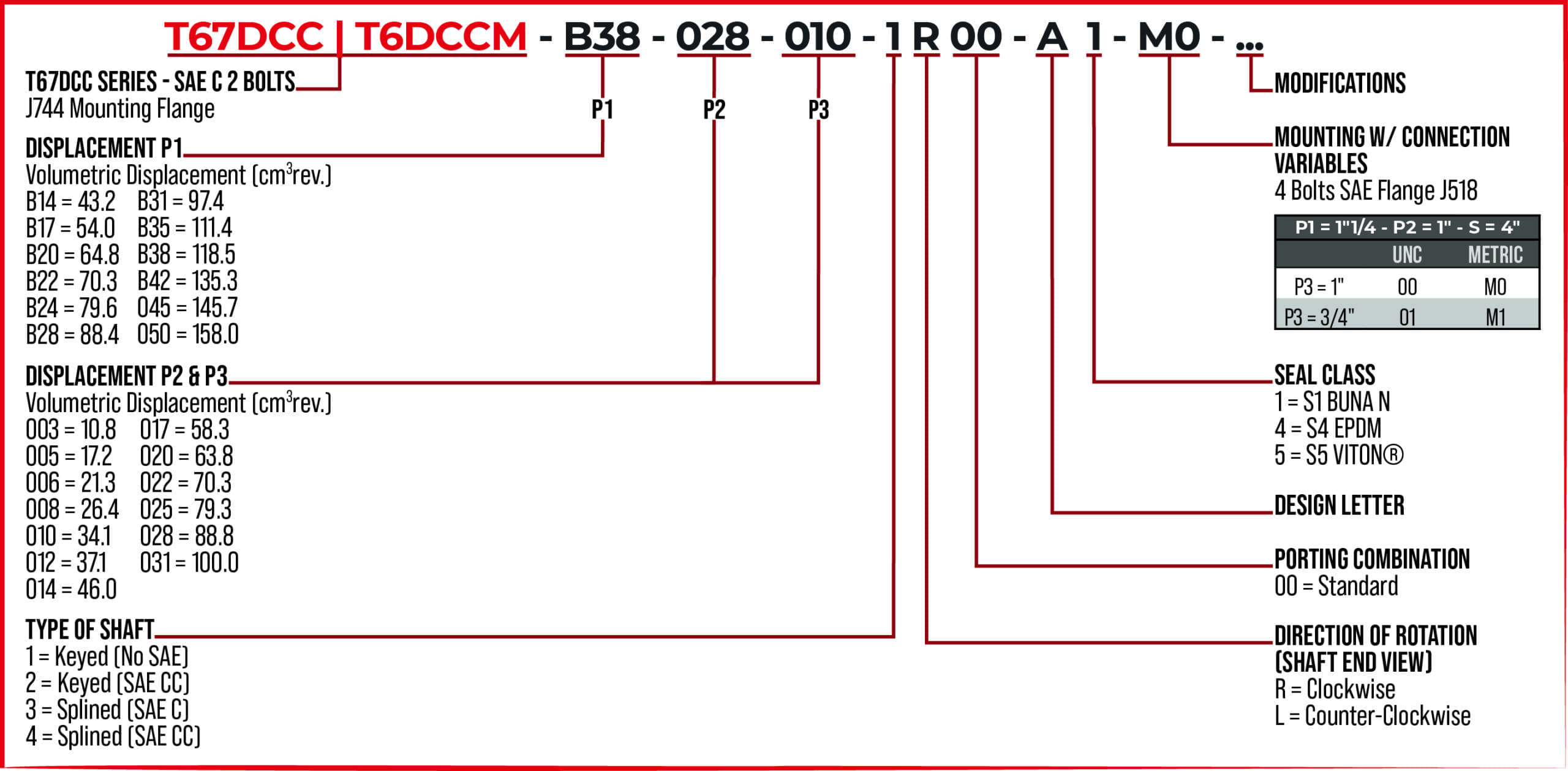

T67DCC | T6DCCM SERIES – TRIPLE VANE

PRESSURE PORT: P1

SERIES RING SIZE CC/REV MIN. SPEED MAX. SPEED INT. PRESSURE CONT. PRESSURE
B14 44.0 600 RPM 3000 RPM 300 BAR 250 BAR
B17 55.0 600 RPM 3000 RPM 300 BAR 250 BAR
B20 66.0 600 RPM 3000 RPM 300 BAR 250 BAR
B22 70.3 600 RPM 3000 RPM 300 BAR 250 BAR
B24 81.1 600 RPM 3000 RPM 300 BAR 250 BAR
B28 90.0 600 RPM 3000 RPM 300 BAR 250 BAR
B31 99.2 600 RPM 3000 RPM 300 BAR 250 BAR
B35 113.4 600 RPM 2800 RPM 280 BAR 250 BAR
B38 120.6 600 RPM 2800 RPM 280 BAR 250 BAR
B42 137.5 600 RPM 2500 RPM 260 BAR 230 BAR
045 145.7 600 RPM 2200 RPM 240 BAR 210 BAR
050 158.0 600 RPM 2200 RPM 210 BAR 160 BAR

PRESSURE PORT: P2 & P3

SERIES RING SIZE CC/REV MIN. SPEED MAX. SPEED INT. PRESSURE CONT. PRESSURE
003 10.8 600 RPM 2200 RPM 275 BAR 240 BAR
005 17.2 600 RPM 2200 RPM 275 BAR 240 BAR
006 21.3 600 RPM 2200 RPM 275 BAR 240 BAR
008 26.4 600 RPM 2200 RPM 275 BAR 240 BAR
010 34.1 600 RPM 2200 RPM 275 BAR 240 BAR
012 37.1 600 RPM 2200 RPM 275 BAR 240 BAR
014 46.0 600 RPM 2200 RPM 275 BAR 240 BAR
017 58.3 600 RPM 2200 RPM 275 BAR 240 BAR
020 63.8 600 RPM 2200 RPM 275 BAR 240 BAR
022 70.3 600 RPM 2200 RPM 275 BAR 240 BAR
025 79.3 600 RPM 2200 RPM 275 BAR 240 BAR
028 88.8 600 RPM 2200 RPM 210 BAR 160 BAR
031 100.0 600 RPM 2200 RPM 210 BAR 160 BAR

SPARE PARTS

PART NUMBER ACCESSORIES – DESCRIPTION
S24-25571 #1 Shaft. Non SAE 1.25″ ∅ Parallel Keyed
S24-25572 #2 Shaft. SAE CC 1.5″ ∅ Parallel Keyed
S24-25573 #3 Shaft. SAE C 14T Splined Shaft
S24-25574 #4 Shaft. SAE CC 17T Splined Shaft
S24-25575-0 T67 & T6DCC Seal Kit S1
S24-25575-5 T67DCC & T6DCCM Seal Kit S5
T7DC P1 Cartridge
T6DC P2 Cartridge
T6DCC P3 Cartridge
