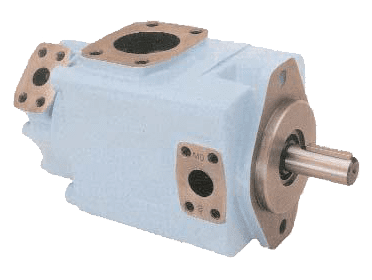

Parker Denison Double Vane | T67EC & T6ECM

Parker Denison T67EC PDF

Displacements from 132.3 cc – 269 cc (E Frame)
10.8 cc – 100.0 cc (C Frame)
Operating pressure up to 275 bar (240 Bar Continuous)

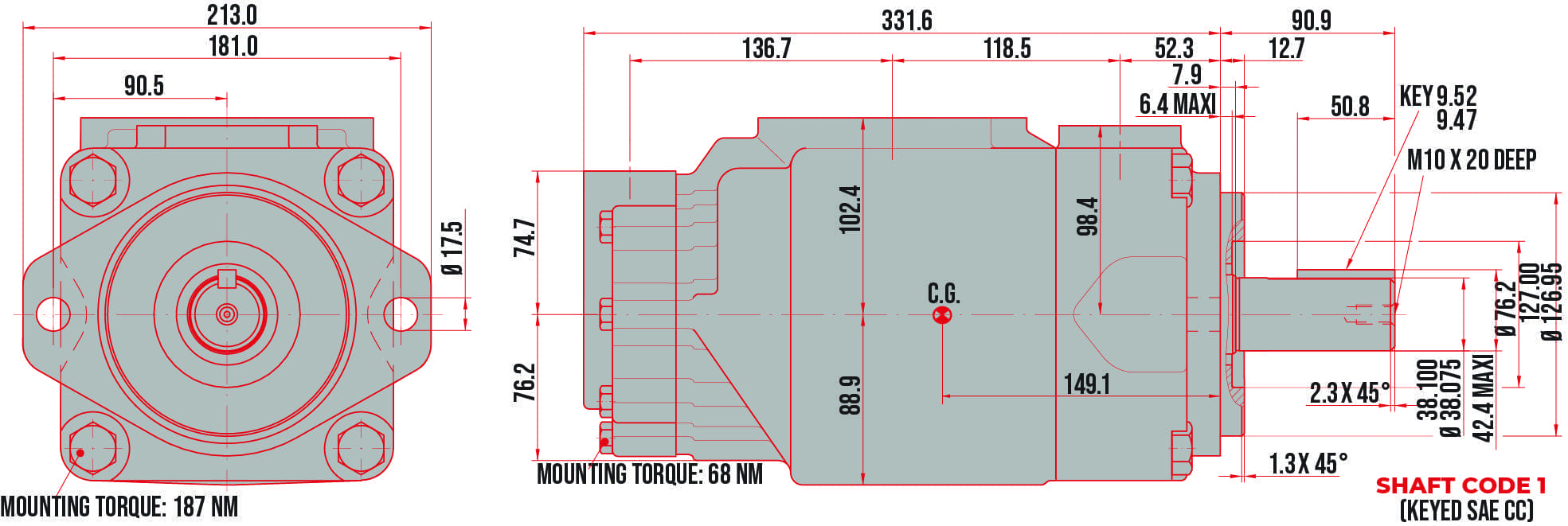

Mount: 2 Bolt SAE C (5” Spigot)
Shaft: 1-1/4” Parallel Keyed
1-1/2” Parallel Keyed
14T x 1-1/4” Spline
17T x 1-1/2” Spline

Category:

Description

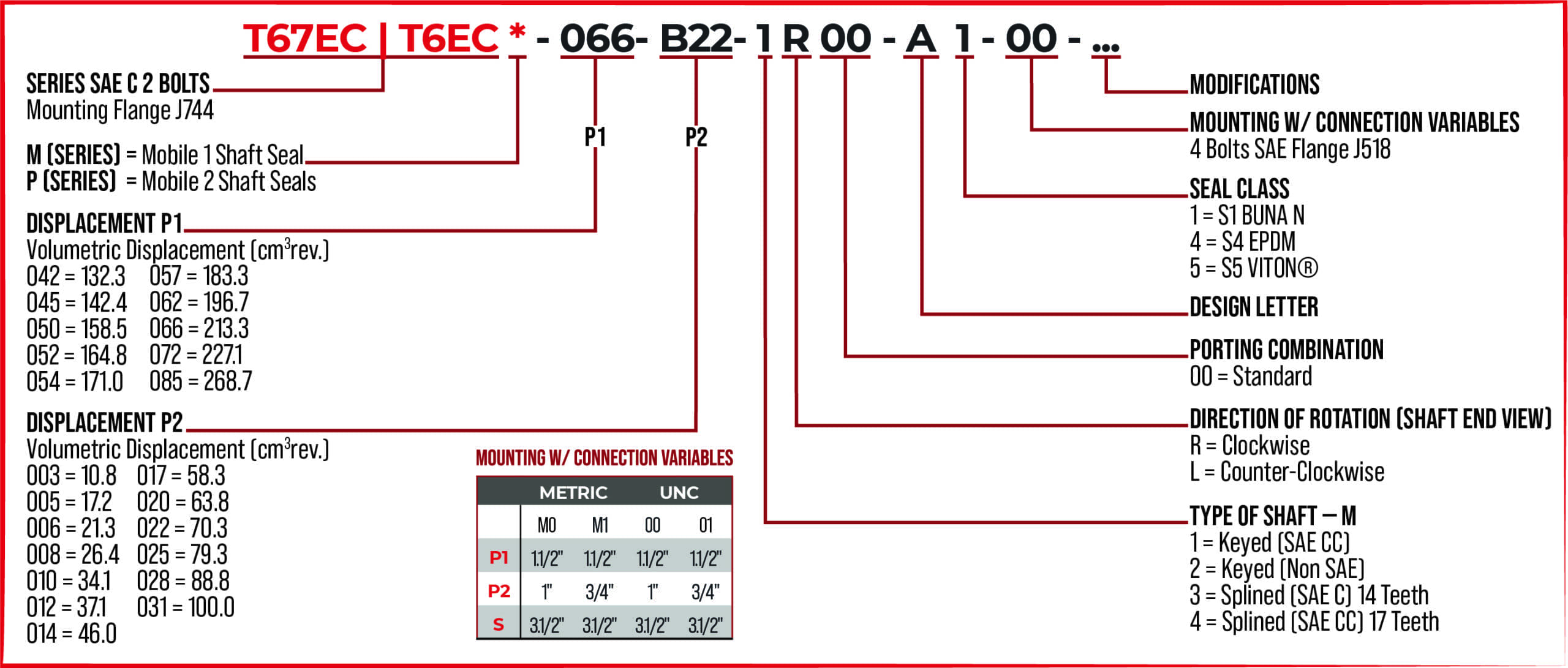

T67EC | T6ECM SERIES – DOUBLE VANE

PRESSURE PORT: P1

SERIES RING SIZE CC/REV MIN. SPEED MAX. SPEED INT. PRESSURE CONT. PRESSURE
042 132.3 600 RPM 2200 RPM 240 BAR 210 BAR
045 142.4 600 RPM 2200 RPM 240 BAR 210 BAR
050 158.5 600 RPM 2200 RPM 240 BAR 210 BAR
052 164.8 600 RPM 2200 RPM 240 BAR 210 BAR
054 171.0 600 RPM 2200 RPM 240 BAR 210 BAR
057 183.3 600 RPM 2200 RPM 240 BAR 210 BAR
062 196.7 600 RPM 2200 RPM 240 BAR 210 BAR
066 213.3 600 RPM 2200 RPM 240 BAR 210 BAR
072 227.1 600 RPM 2200 RPM 240 BAR 210 BAR
085 268.7 600 RPM 2000 RPM 90 BAR 75 BAR

PRESSURE PORT: P2

SERIES RING SIZE CC/REV MIN. SPEED MAX. SPEED INT. PRESSURE CONT. PRESSURE
003 10.8 600 RPM 2200 RPM 275 BAR 240 BAR
005 17.2 600 RPM 2200 RPM 275 BAR 240 BAR
006 21.3 600 RPM 2200 RPM 275 BAR 240 BAR
008 26.4 600 RPM 2200 RPM 275 BAR 240 BAR
010 34.1 600 RPM 2200 RPM 275 BAR 240 BAR
012 37.1 600 RPM 2200 RPM 275 BAR 240 BAR
014 46.0 600 RPM 2200 RPM 275 BAR 240 BAR
017 58.3 600 RPM 2200 RPM 275 BAR 240 BAR
020 63.8 600 RPM 2200 RPM 275 BAR 240 BAR
022 70.3 600 RPM 2200 RPM 275 BAR 240 BAR
025 79.3 600 RPM 2200 RPM 275 BAR 240 BAR
028 88.8 600 RPM 2200 RPM 210 BAR 160 BAR
031 100.0 600 RPM 2200 RPM 210 BAR 160 BAR

SPARE PARTS

PART NUMBER ACCESSORIES – DESCRIPTION
S14-28178 #1 Shaft. SAE CC 1.5″ ∅ Parallel Keyed
S24-49213 #2 Shaft. (Non SAE) 1.25″ ∅ Parallel Keyed
S14-28176 #3 Shaft. SAE C 14T Splined Shaft
S14-28177 #4 Shaft. SAE CC 17T Splined Shaft
S24-10242 T67EC & T6EC Seal Kit S1
S24-10219 T67EC & T6EC Seal Kit S5 (Viton)
T67EC P1 Cartridge
T67EC/DC P2 Cartridge
