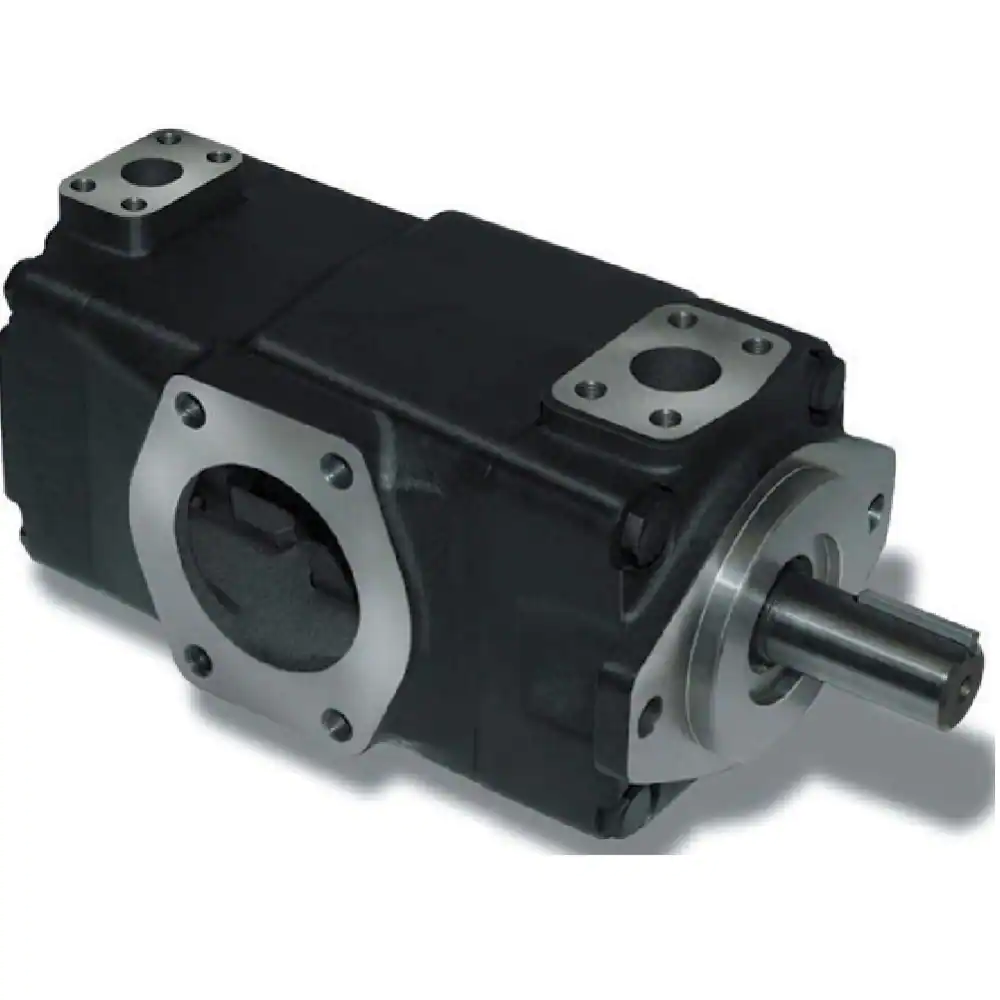

Parker Denison Double Vane | T6DC & T67DC

Parker Denison T67DC PDF

T6DC:
Displacements from 10.8–158 cc/rev
Operating pressure up to 300 Bar
Mount: 2 Bolt SAE C (5” Spigot)
Shaft: 1-1/4” Parallel Keyed
14T x 1-1/4” Spline

T67DC:
Displacements: 47.6–190.5cc (D Frame)
10.8–100.0cc (C Frame)
SAE C Parallel and spline options
SAE C 2 Bolt Mount
Operating Pressures up to 240 Bar Continuous
Double Lip Vane Technology

Category:

Description

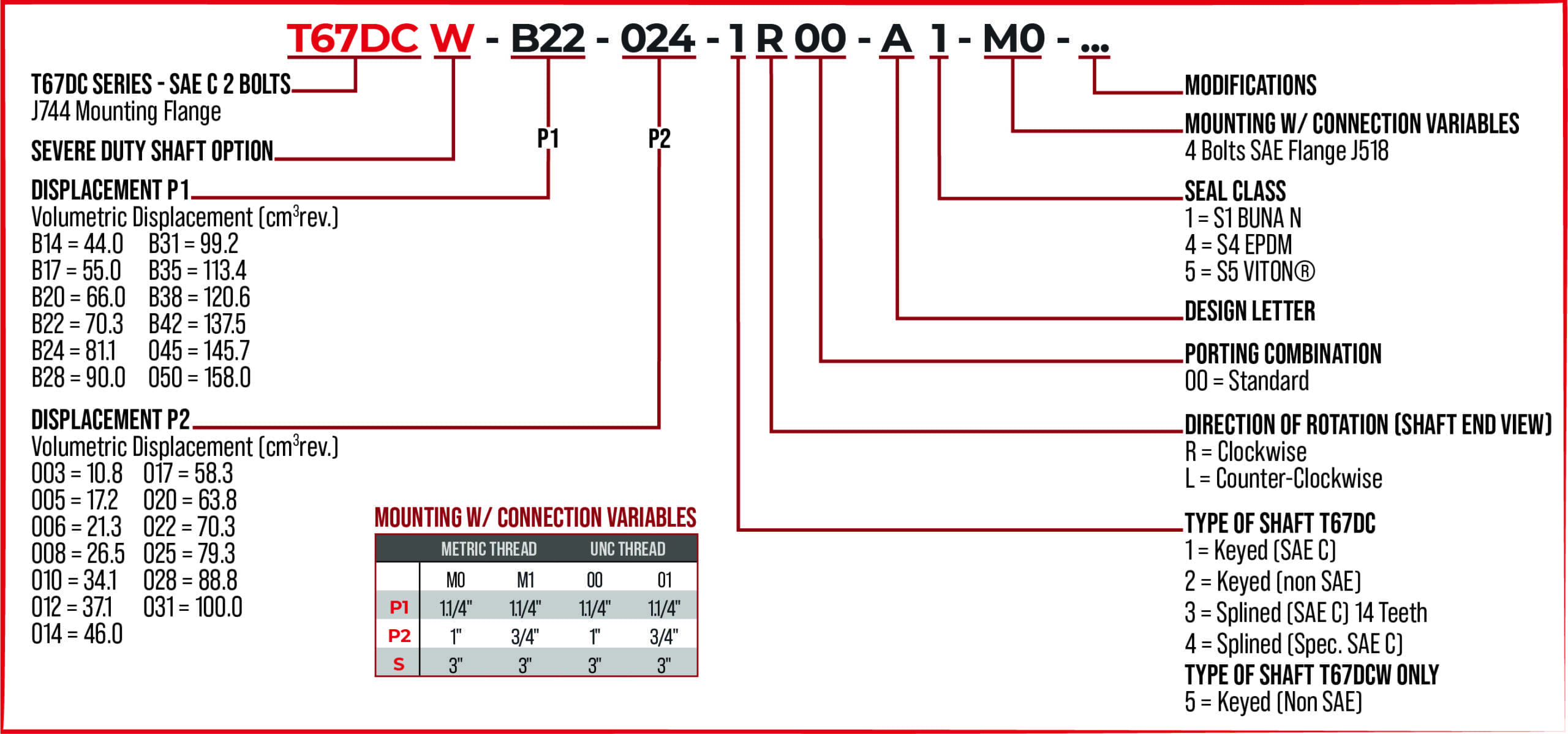

T6DC | T67DC SERIES – DOUBLE VANE

PRESSURE PORT: P1

SERIES RING SIZE CC/REV MIN. SPEED MAX. SPEED INT. PRESSURE CONT. PRESSURE
B14 44.0 600 RPM 3000 RPM 300 BAR 250 BAR
B17 55.0 600 RPM 3000 RPM 300 BAR 250 BAR
B20 66.0 600 RPM 3000 RPM 300 BAR 250 BAR
B22 70.3 600 RPM 3000 RPM 300 BAR 250 BAR
B24 81.1 600 RPM 3000 RPM 300 BAR 250 BAR
B28 90.0 600 RPM 3000 RPM 300 BAR 250 BAR
B31 99.2 600 RPM 3000 RPM 300 BAR 250 BAR
B35 113.4 600 RPM 2800 RPM 280 BAR 250 BAR
B38 120.6 600 RPM 2800 RPM 280 BAR 250 BAR
B42 137.5 600 RPM 2500 RPM 260 BAR 230 BAR
045 145.7 600 RPM 2200 RPM 240 BAR 210 BAR
050 158.0 600 RPM 2200 RPM 210 BAR 160 BAR

PRESSURE PORT: P2

SERIES RING SIZE CC/REV MIN. SPEED MAX. SPEED INT. PRESSURE CONT. PRESSURE
003 10.8 600 RPM 2200 RPM 275 BAR 240 BAR
005 17.2 600 RPM 2200 RPM 275 BAR 240 BAR
006 21.3 600 RPM 2200 RPM 275 BAR 240 BAR
008 26.4 600 RPM 2200 RPM 275 BAR 240 BAR
010 34.1 600 RPM 2200 RPM 275 BAR 240 BAR
012 37.1 600 RPM 2200 RPM 275 BAR 240 BAR
014 46.0 600 RPM 2200 RPM 275 BAR 240 BAR
017 58.3 600 RPM 2200 RPM 275 BAR 240 BAR
020 63.8 600 RPM 2200 RPM 275 BAR 240 BAR
022 70.3 600 RPM 2200 RPM 275 BAR 240 BAR
025 79.3 600 RPM 2200 RPM 275 BAR 240 BAR
028 88.8 600 RPM 2200 RPM 210 BAR 160 BAR
031 100.0 600 RPM 2200 RPM 210 BAR 160 BAR

SPARE PARTS

PART NUMBER ACCESSORIES – DESCRIPTION
S14-42520 #1 Shaft. SAE C 1.25″ ∅ Parallel Keyed
S14-42521 #2 Shaft. Non SAE C 1.25″ ∅ Parallel Keyed
S14-42518 #3 Shaft. SAE C 1.25″ ∅ 14T Splined Shaft
S14-42519 #4 Shaft. SAE C (Spec. 1.25″ 14 T) Splined Shaft
S24-26206 #5 Shaft. Severe Duty Shaft 1.375″ ∅
S24-10170 T67DC Seal Kit (S1 Seal Kit)
S24-10170-5 S5 Seal kit for T6DCW (Severe Duty Shaft)
T7DB/DC P1 Cartridge
T6DC P2 Cartridge
