Parker Denison Double Vane | T7EDS & T6EDM

Parker Denison T7ED/S PDF

Displacements from 132.3 cc – 269 cc (E Frame)
47.6 cc – 190.5 cc (D Frame)
Operating pressure up to 300 Bar (250 Bar Continuous)
Mount: 2 Bolt SAE C (5” Spigot)
Shaft: 1-1/2” Parallel Keyed
14T x 1-1/4” Spline
17T x 1-1/2” Spline

Category: Vane Pumps

Description
Additional information

Description

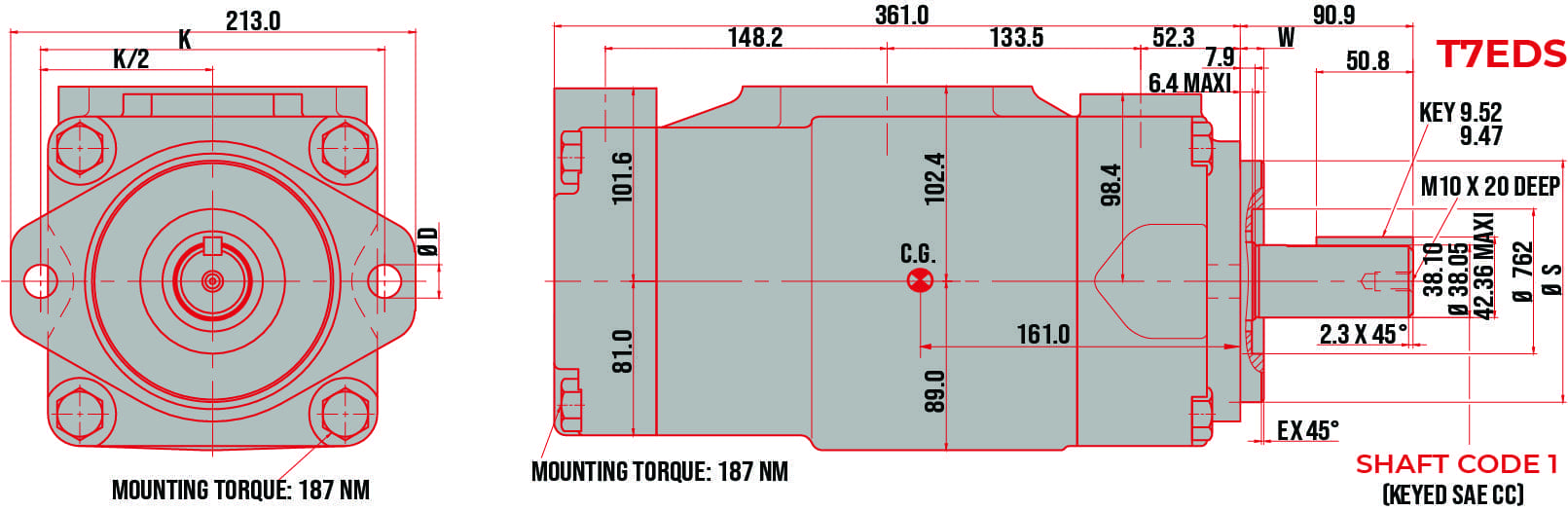

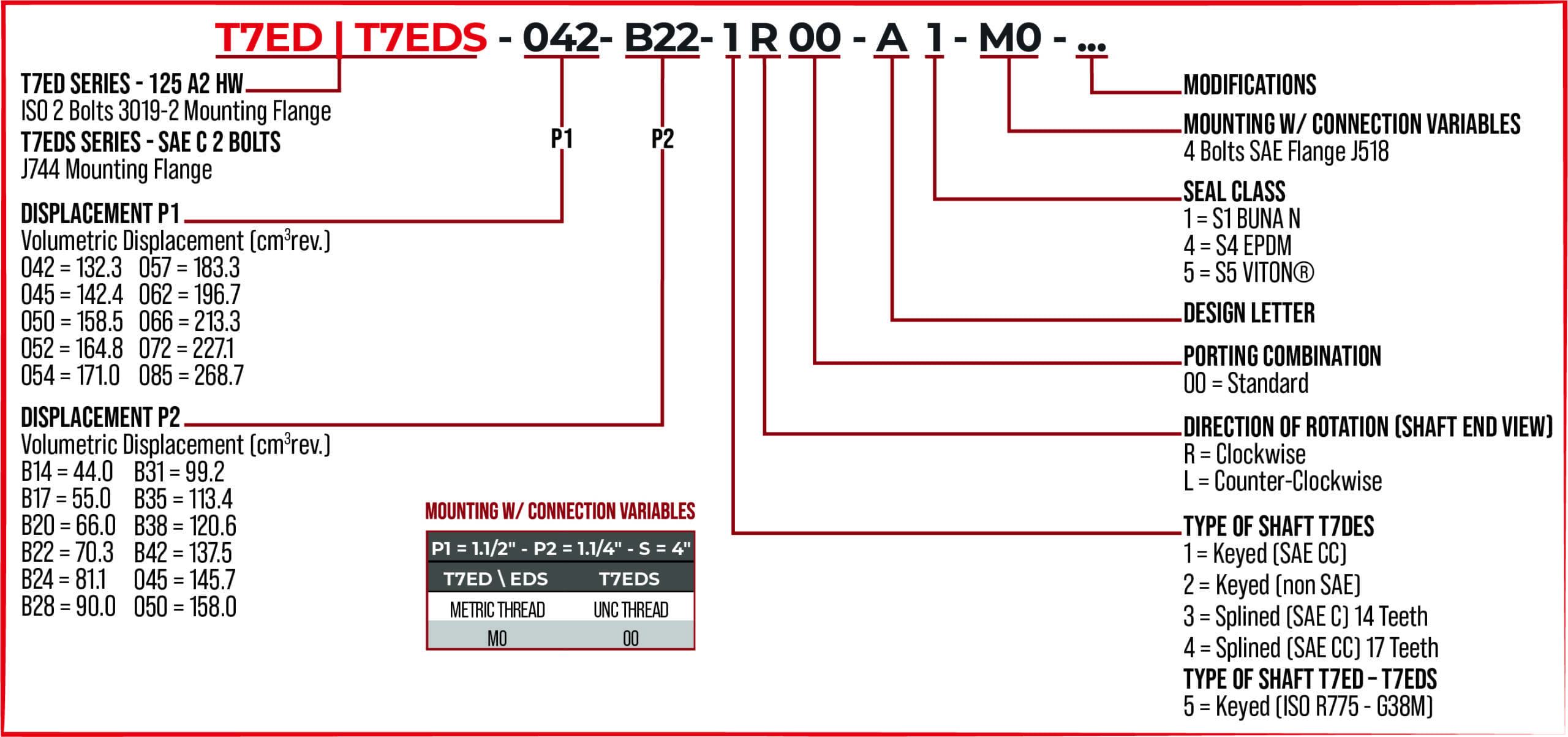

T7EDS | T6EDM SERIES – DOUBLE VANE

PRESSURE PORT: P1

SERIES RING SIZE	CC/REV	MIN. SPEED	MAX. SPEED	INT. PRESSURE	CONT. PRESSURE
042	132.3	600 RPM	2200 RPM	240 BAR	210 BAR
045	142.4	600 RPM	2200 RPM	240 BAR	210 BAR
050	158.5	600 RPM	2200 RPM	240 BAR	210 BAR
052	164.8	600 RPM	2200 RPM	240 BAR	210 BAR
054	171.0	600 RPM	2200 RPM	240 BAR	210 BAR
057	183.3	600 RPM	2200 RPM	240 BAR	210 BAR
062	196.7	600 RPM	2200 RPM	240 BAR	210 BAR
066	213.3	600 RPM	2200 RPM	240 BAR	210 BAR
072	227.1	600 RPM	2200 RPM	240 BAR	210 BAR
085	268.7	600 RPM	2000 RPM	90 BAR	75 BAR

PRESSURE PORT: P2

SERIES RING SIZE	CC/REV	MIN. SPEED	MAX. SPEED	INT. PRESSURE	CONT. PRESSURE
B14	44.0	600 RPM	3000 RPM	300 BAR	250 BAR
B17	55.0	600 RPM	3000 RPM	300 BAR	250 BAR
B20	66.0	600 RPM	3000 RPM	300 BAR	250 BAR
B22	70.3	600 RPM	3000 RPM	300 BAR	250 BAR
B24	81.1	600 RPM	3000 RPM	300 BAR	250 BAR
B28	90.0	600 RPM	3000 RPM	300 BAR	250 BAR
B31	99.2	600 RPM	3000 RPM	300 BAR	250 BAR
B35	113.4	600 RPM	2800 RPM	280 BAR	250 BAR
B38	120.6	600 RPM	2800 RPM	280 BAR	250 BAR
B42	137.5	600 RPM	2500 RPM	260 BAR	230 BAR
045	145.7	600 RPM	2200 RPM	240 BAR	210 BAR
050	158.0	600 RPM	2200 RPM	210 BAR	160 BAR

SPARE PARTS

PART NUMBER	ACCESSORIES – DESCRIPTION
S14-28182	#1 Shaft. SAE CC 1.5″ ∅ Parallel Keyed
S24-49214	#2 Shaft. (Non SAE) 1.25″ ∅ Parallel Keyed
S14-28180	#3 Shaft. SAE C 14T Splined Shaft
S14-28181	#4 Shaft. SAE CC 17T Splined Shaft
S24-10219-0	T7ED & T6ED Seal Kit S1
S24-10219-5	T7ED & T6ED Seal Kit S5 (Viton)
	T7ED P1 Cartridge
	T7ED P2 Cartridge
