Description

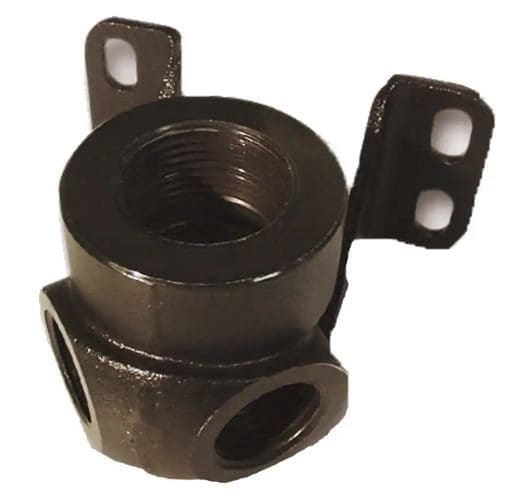

Transair® Wall Brackets make connecting machinery or tools to a compressed air piping system or inert gas supply line quick and easy. Each wall bracket is designed with a drain outlet for ease of bleeding the air lines of moisture or excess air. Offered in 1, 2, or 3 port configurations for flexibility and adaptability to the environment. Parker offers a wall bracket with ball valve for extra control and safety of the compressed air or inert gas media flow.
The “full bore” design of Transair connectors paired with the low coefficient of friction in the pipe ensures optimal flow throughout the system. All connectors are 100% recyclable, silicone-free, and made of non-flammable materials. (UL94-HB compliant) Parker has a 10-year warranty on all Transair pipe and connectors.
Markets:
• Automotive Assembly
• Food & Beverage
• Packaging
• Industrial Plants
• Aerospace
Features/Benefits:
• Quick Connection Technology
• Modular and Reusable
• No Corrosion
• Full-bore Design
• Lower Installation Costs
• Optimum Flow Rate
• 10-year Warranty
• Immediate Pressurization
• Lightweight
Applications:
• Compressed Air
• Inert Gas
Specifications:
Maximum Working Pressure: 188psi (12,9bar) when system is operated between -4 to 140 F (-20 to 60 C)
232psi (15,9bar) when system is operated between -4 to 115 F (-20 to 46.1 C)
